2,8x8 YSB SC Metallic Screw
تسجيل الدخول أو التسجيل لمعرفة السعر

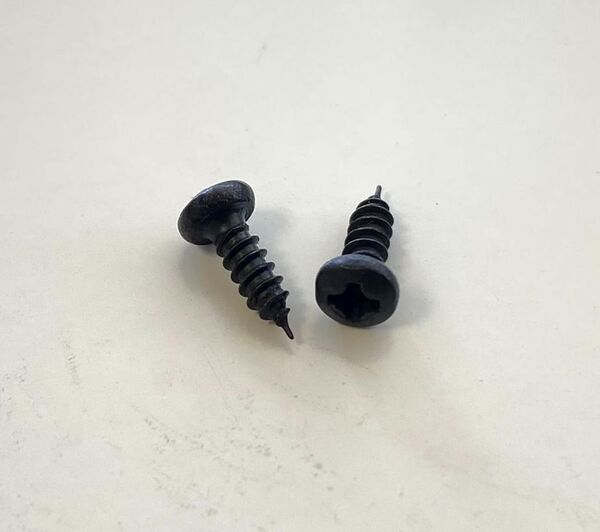

2,2x4,5 mm YSB SC Black Screw
تسجيل الدخول أو التسجيل لمعرفة السعر
2,2x6,5mm YSB SC Screw (head dia 3,80 +- 0,1)
[A-675-0-0-S-0]
باركود :
8698651356434المواصفات
| Color | Metallic, Black |
| Fully Threaded | Fully Threaded |
| Head Diameter | 4.2 mm |
| Head Height | 1.8 mm |
| Phillips | PH Philips |
| Drive Style | PH-1 |
| Heat Treatment | Carbonitration |
| Thread Direction | Right Hand |
| Head Type | Yuvarlak |
| System of Measurement | Metric |
| Country of Origin | Türkiye |
| Hardness | Min.450 Hv0.3 |
| Maximum Drilling Thickness | 0.65 mm |
| Tapping Method | Kendinden Diş Açma |
| Tapping Screw Type | C |
| Shank Cross Section | Round |
| For Use In | Sheet Metal |
| Karşılanan Standart | DIN 7981 |
| Rounded Head Style | Pan |
| Rounded Head Profile | Standard |
| Thread Size | 2.2 mm |
| Length | 0 - 0 mm |
| Material | 20 Mn-B4 |
| Surface Protection | Metallic A2F Cr+3 /Black A2S Cr+3 |
