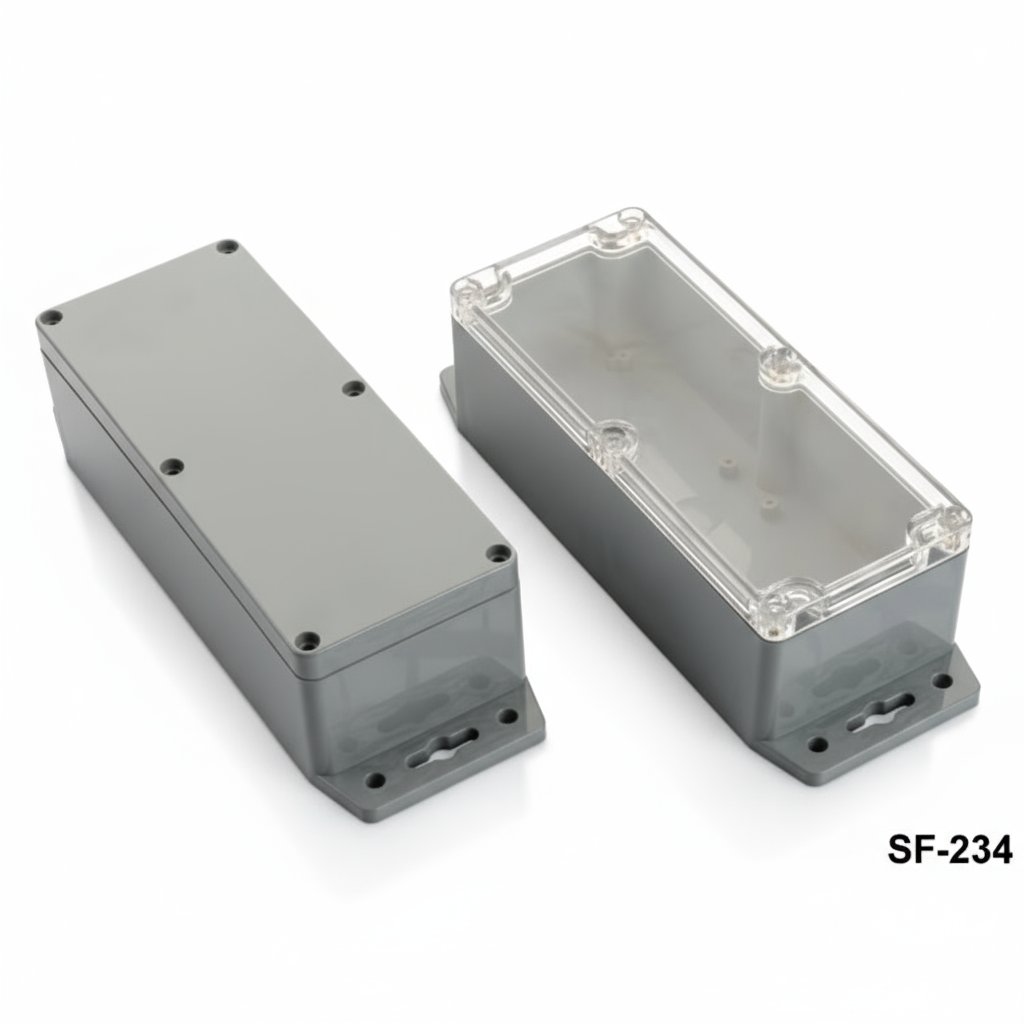

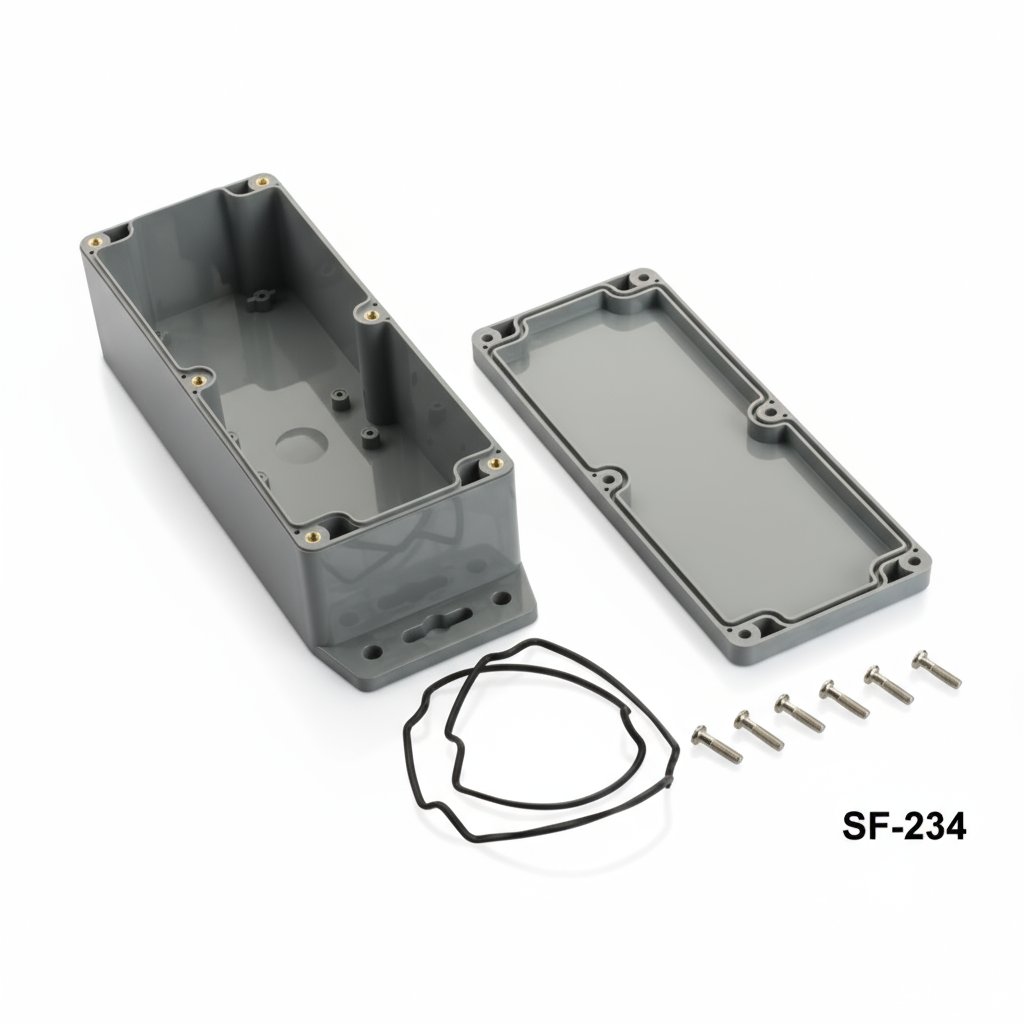

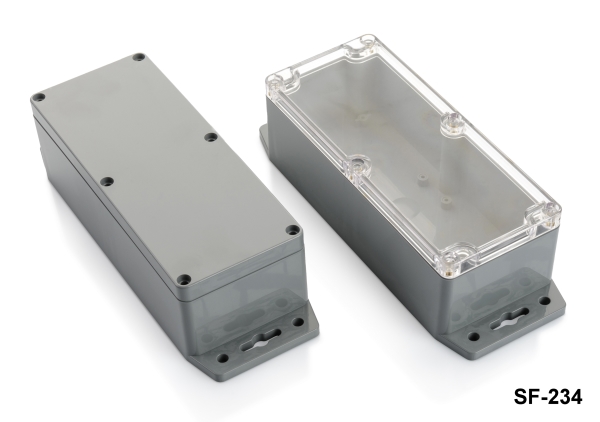

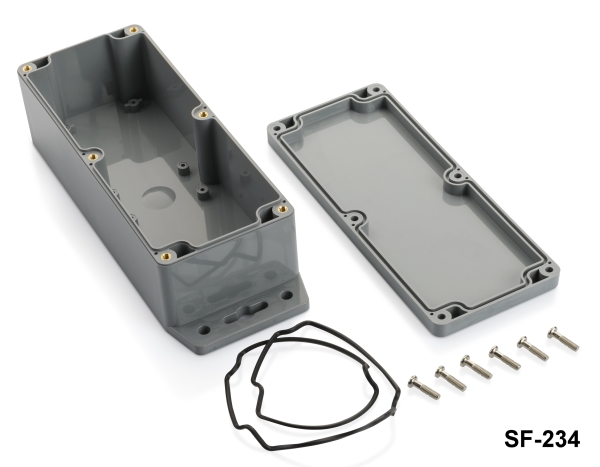

![[SF-234-0-0-D-0] SF-234 IP-67 Sealed Box w/Mounting Foot ( Dark Gray, Flat Cover)](/web/image/base_multi_image.image/16129/image_128/%5BSF-234-0-0-D-0%5D%20%20SF-234%20IP-67%20Sealed%20Box%20w-Mounting%20Foot%20%28%20Dark%20Gray%2C%20Flat%20Cover%29?unique=450300c)

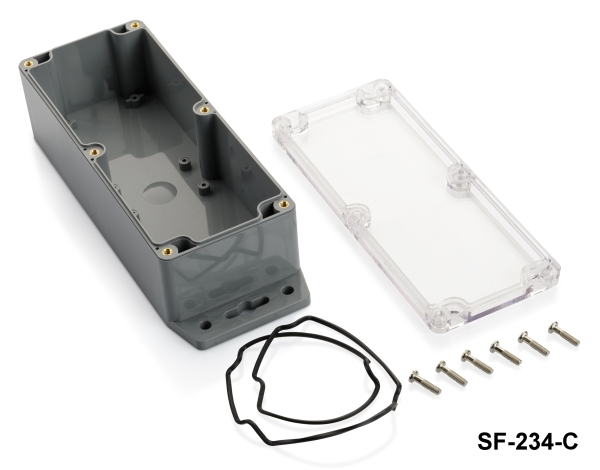

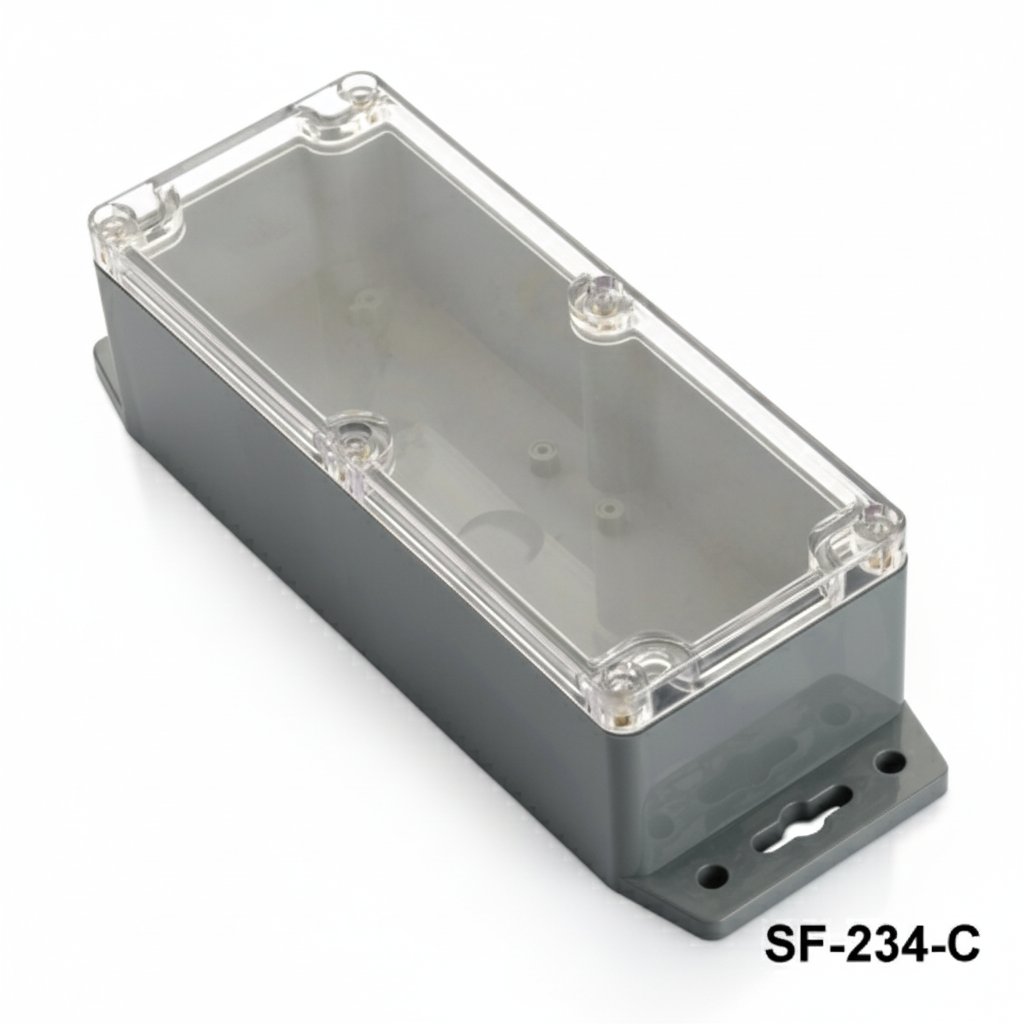

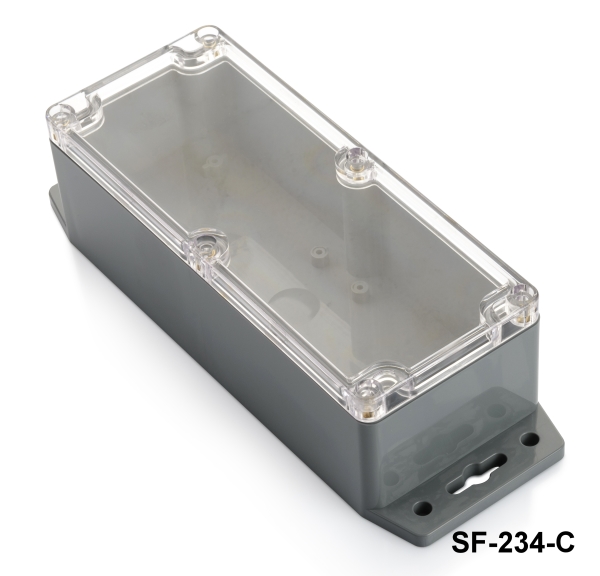

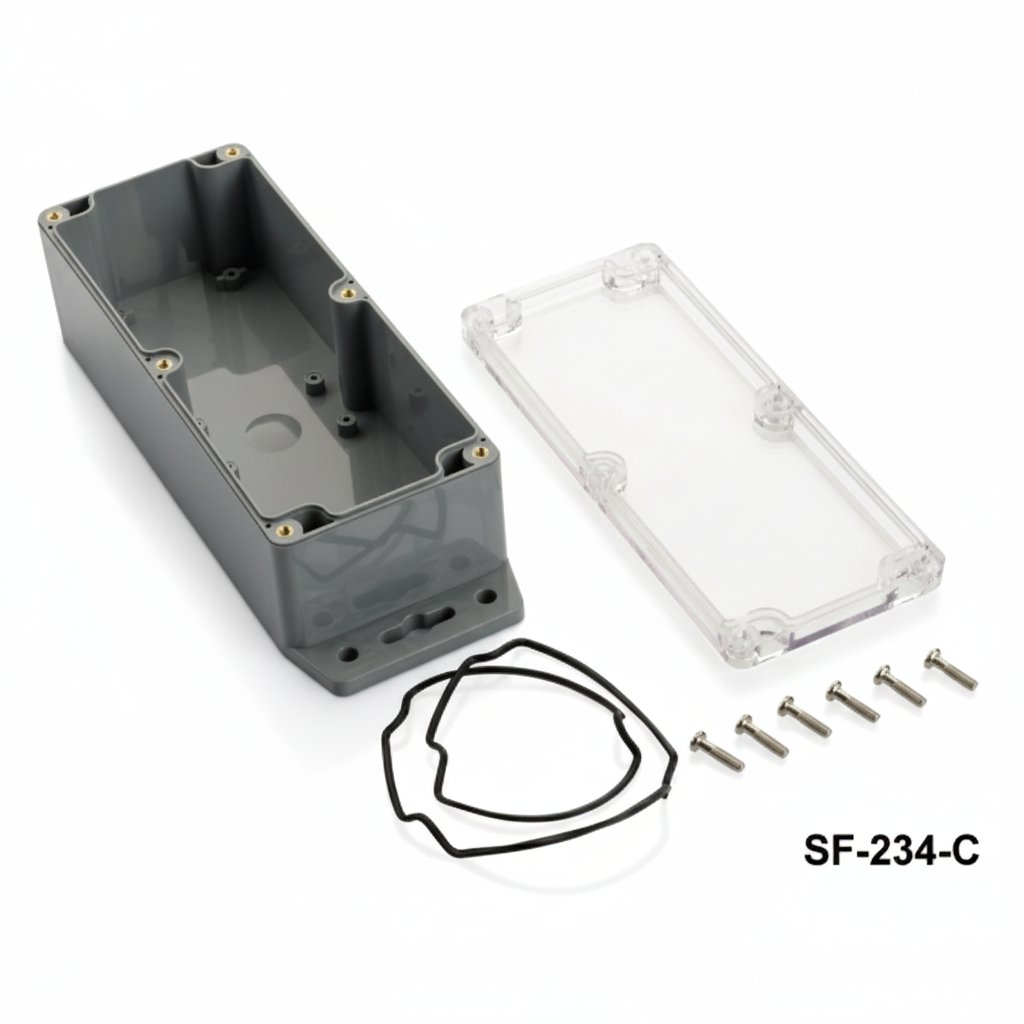

![[SF-234-C-0-D-0] SF-234 IP-67 密封盒，带安装脚（深灰色，透明盖）](/web/image/base_multi_image.image/16131/image_128/%5BSF-234-C-0-D-0%5D%20SF-234%20IP-67%20%E5%AF%86%E5%B0%81%E7%9B%92%EF%BC%8C%E5%B8%A6%E5%AE%89%E8%A3%85%E8%84%9A%EF%BC%88%E6%B7%B1%E7%81%B0%E8%89%B2%EF%BC%8C%E9%80%8F%E6%98%8E%E7%9B%96%EF%BC%89?unique=8b26f7f)
![[SF-234-0-0-D-0] SF-234 IP-67 Sealed Box w/Mounting Foot ( Dark Gray, Flat Cover)](/web/image/base_multi_image.image/16129/image_1024/%5BSF-234-0-0-D-0%5D%20%20SF-234%20IP-67%20Sealed%20Box%20w-Mounting%20Foot%20%28%20Dark%20Gray%2C%20Flat%20Cover%29?unique=450300c)
![[SF-234-C-0-D-0] SF-234 IP-67 密封盒，带安装脚（深灰色，透明盖）](/web/image/base_multi_image.image/16131/image_1024/%5BSF-234-C-0-D-0%5D%20SF-234%20IP-67%20%E5%AF%86%E5%B0%81%E7%9B%92%EF%BC%8C%E5%B8%A6%E5%AE%89%E8%A3%85%E8%84%9A%EF%BC%88%E6%B7%B1%E7%81%B0%E8%89%B2%EF%BC%8C%E9%80%8F%E6%98%8E%E7%9B%96%EF%BC%89?unique=8b26f7f)
规格
| 颜色 | 深灰色 |
| 封面 | 透明外壳, 平盖 |
| E1 | 237 |
| E2 | 188 |
| E3 | 160 |
| E4 | 215 |
| B1 (mm) | 82 |
| B2 (mm) | 73 |
| B3 (mm) | 45 |
| B4 (mm) | 50 |
| D1 (mm) | 60 |
| D2 (mm) | 46 |
| D3 (mm) | 50 |
| D4 (mm) | 10 |
| 材料 | ABS, 个人电脑 |
| UL94 | HB |
| A (mm) | 236,8 |
| B（毫米） | 81,7 |
| C (mm) | 59,85 |
| 工作温度 | -30° / +70° |
| IP 费率 | IP67 |
| 每箱单位 | 5 |
