EC-3040 IP-67 Plastic Enclosures
تسجيل الدخول أو التسجيل لمعرفة السعر
EC-2828 IP-67 Plastic Enclosure
تسجيل الدخول أو التسجيل لمعرفة السعر

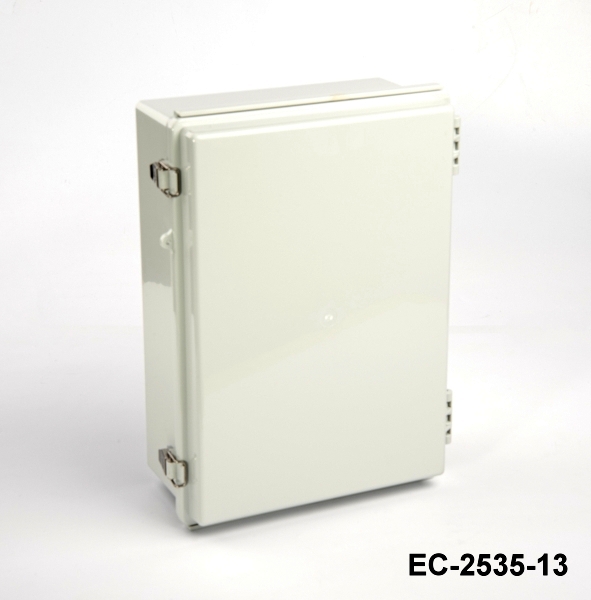

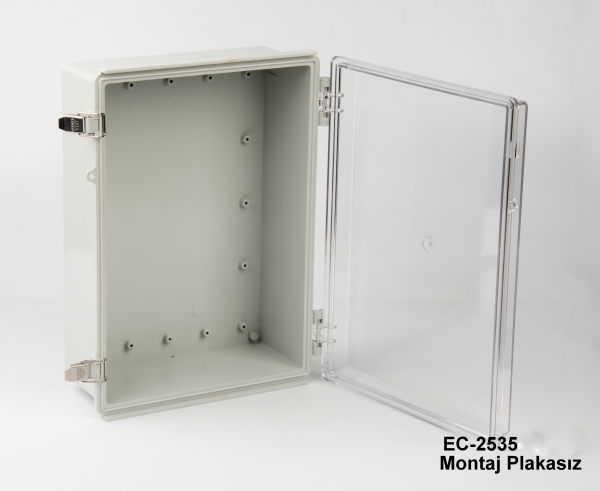

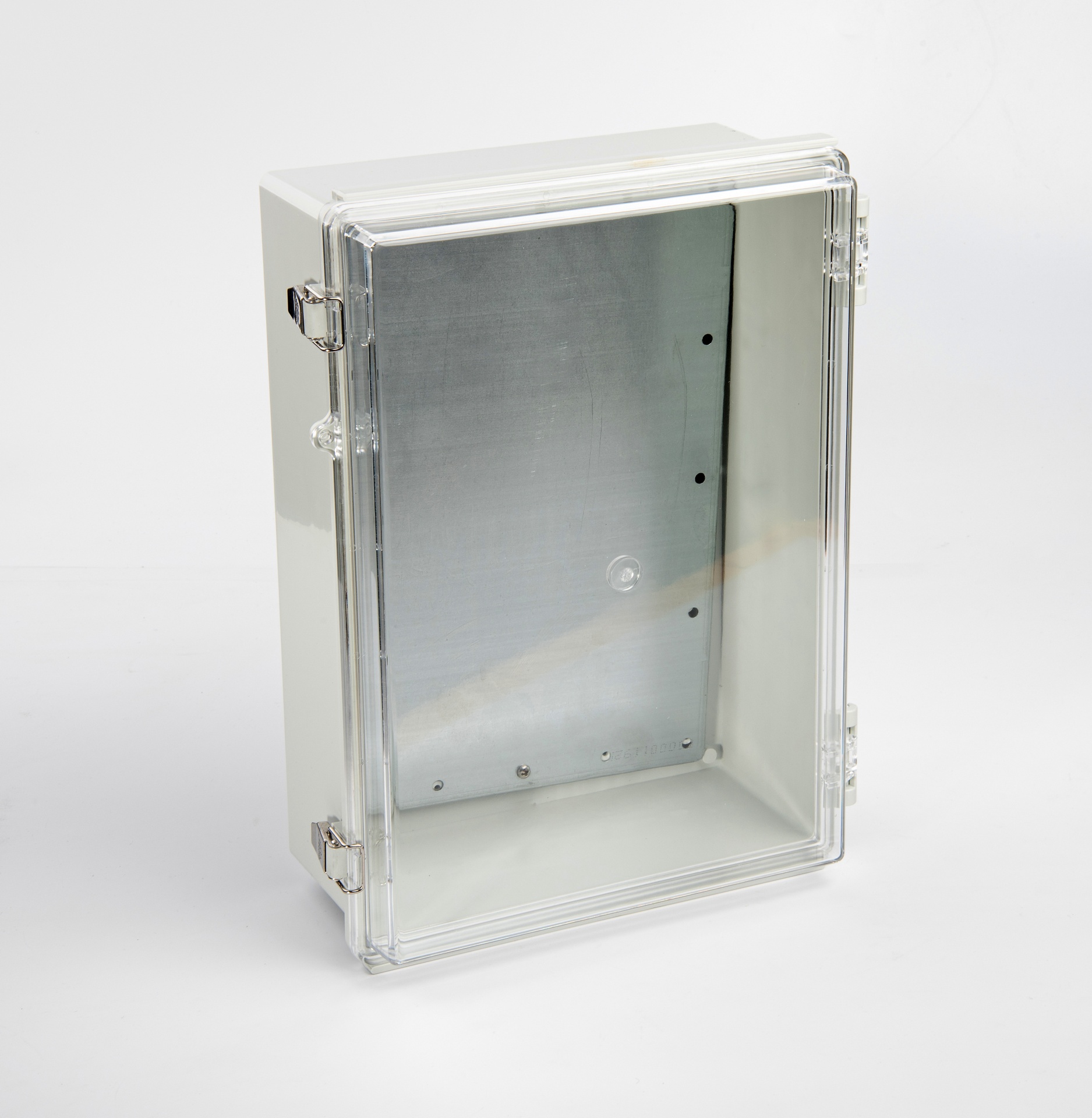

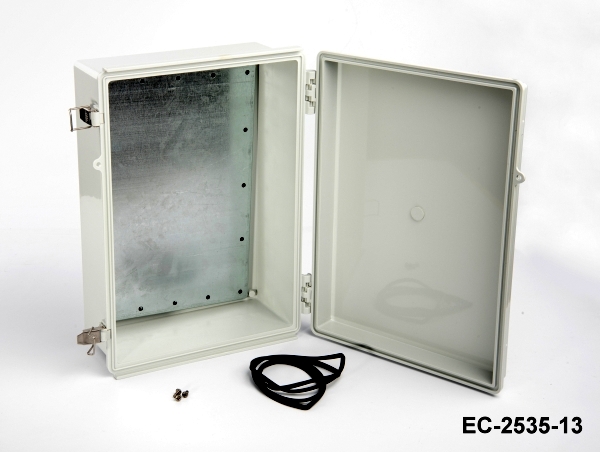

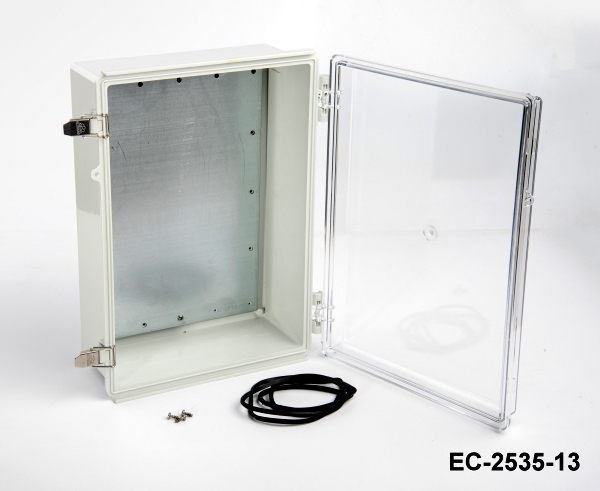

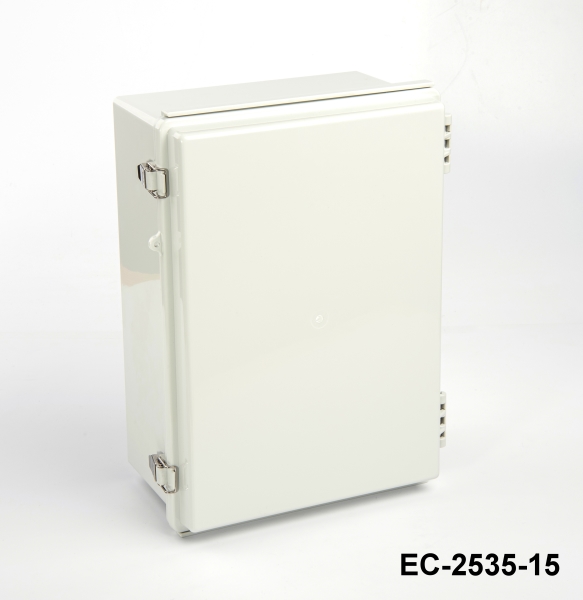

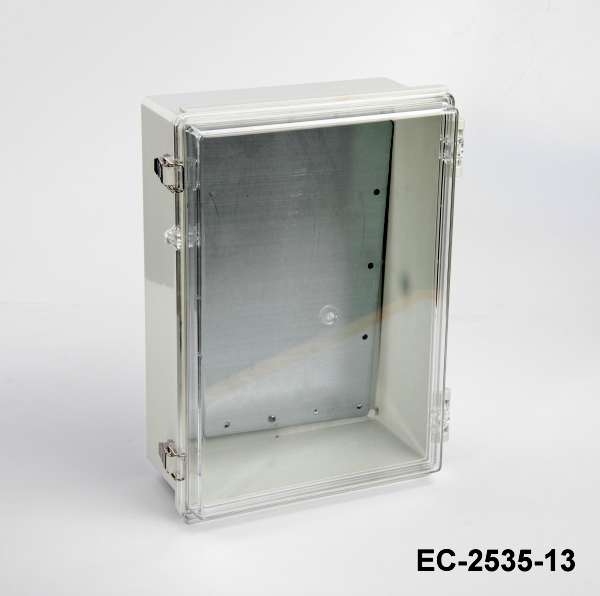

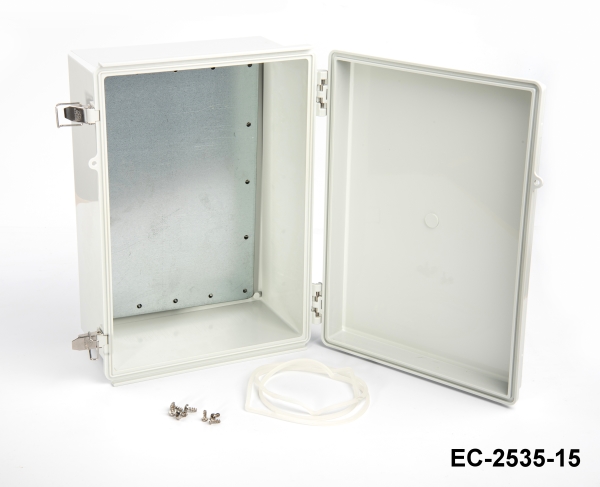

EC-2535 IP-67 Plastic Enclosure
[EC-2535-15-0-G-A]
250 x 350 x 130 - 150 mm
(9.84 x 13.78 x 5.12 in)
باركود :
8698651439977المواصفات
| Color | Light Gray |
| Material | ABS |
| Mounting Plate | with Mounting Plate, without Mounting Plate |
| Top Cover | Transparent Cover, Flat Cover |
| Type | Thickness 150mm, Thickness 130 mm |
| E1 | 250 |
| E2 | 226 |
| E3 | 207 |
| E4 | 180 |
| B1 (mm) | 350 |
| B2 (mm) | 307 |
| B3 (mm) | 280 |
| D1 (mm) | 150, 127 |
| D2 (mm) | 113, 137 |
| D3 (mm) | 97, 120 |
| D4 (mm) | 30 |
| P1 (mm) | 210 |
| P2 (mm) | 310 |
| Material | PC |
| A (mm) | 250 |
| B (mm) | 350 |
| C (mm) | 130 - 150 |
| Operating Temperature | -30° / +70° |
| IP Rate | IP67 |
| Units per box | 1 |
