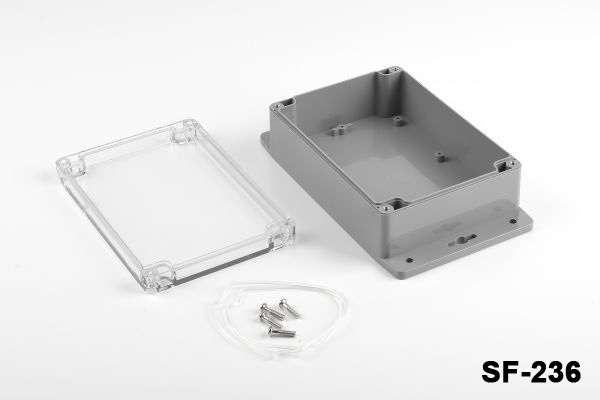

SF-236 IP-67 Flanged Heavy Duty Enclosures

[SF-236-0-0-D-0] 212 x 123 x 60 mm (8.35 x 4.84 x 2.36 in)
https://www.altinkaya.com/web/image/product.template/1874/image_1920?unique=febda22

Login or Register to see price

Not Available For Sale

  • Color
  • Material
  • Top Cover

This combination does not exist.

Contact Us
Barcode :
8698651310191



Specifications

Color Dark Gray
Material ABS
Top Cover Transparent Cover, Flat Cover
E1 212
E2 164
E3 120
E4 191
B1 (mm) 123
B2 (mm) 114
B3 (mm) 90
B4 (mm) 89,5
D1 (mm) 60
D2 (mm) 46
D3 (mm) 45
D4 (mm) 15
UL94 HB
A (mm) 212
B (mm) 123
C (mm) 60
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 10
​
