SE-558 IP-67 Alu Die-Cast Enclosure
SE-558 IP-67 Alu Die-Cast Enclosure
Login or Register to see price
SE-550 IP-67 Alu Die-Cast Enclosure
SE-550 IP-67 Alu Die-Cast Enclosure
Login or Register to see price

SE-554 IP-67 Alu Die-Cast Enclosure

[SE-554-0-0-A-0] 202 x 142 x 55 mm (7.95 x 5.59 x 2.17 in)
https://www.altinkaya.com/web/image/product.template/1840/image_1920?unique=23ded0f

A rugged and customizable solution for protecting your device including 2 seals; one for EMI and for waterproofness and well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

Login or Register to see price

Not Available For Sale


  • EMI Gasket

This combination does not exist.


Barcode :
8698651334050
Share :
Customization options available
Quality guaranteed
Worldwide delivery

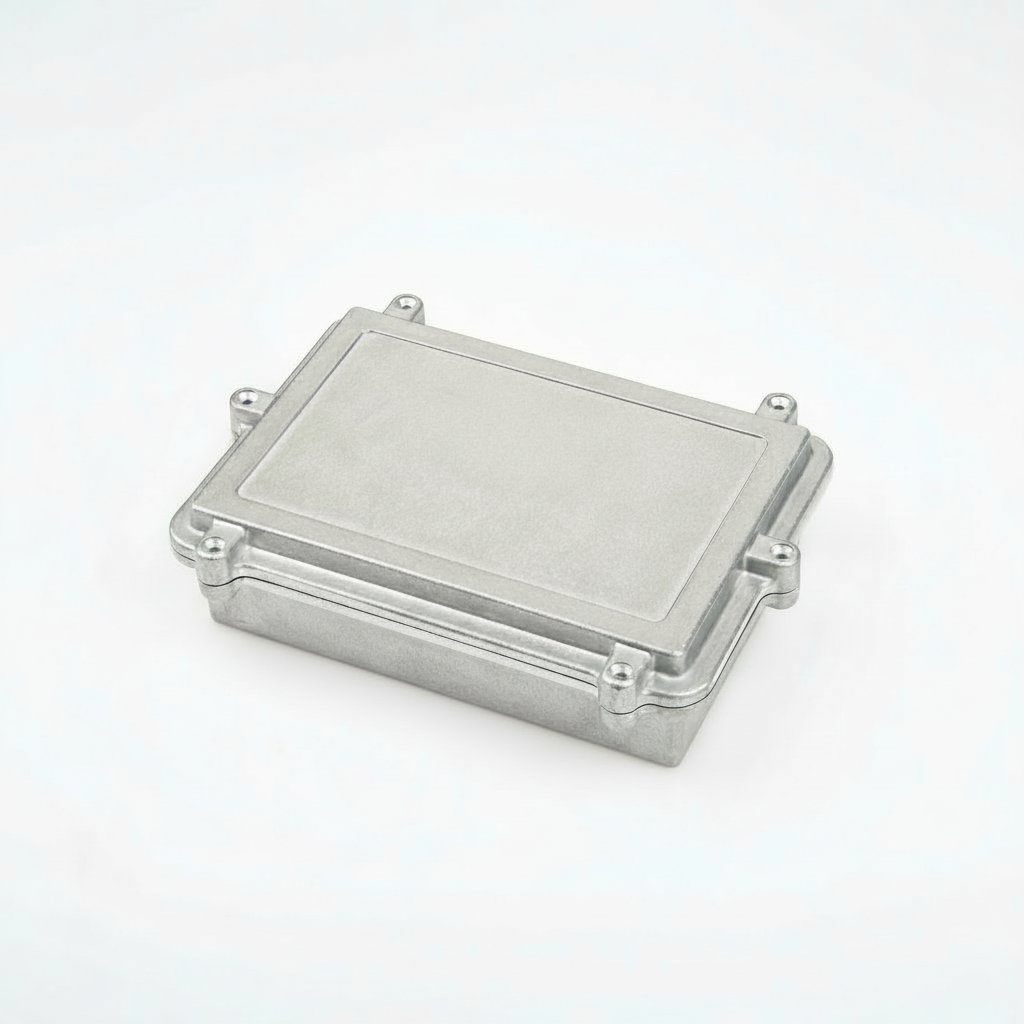

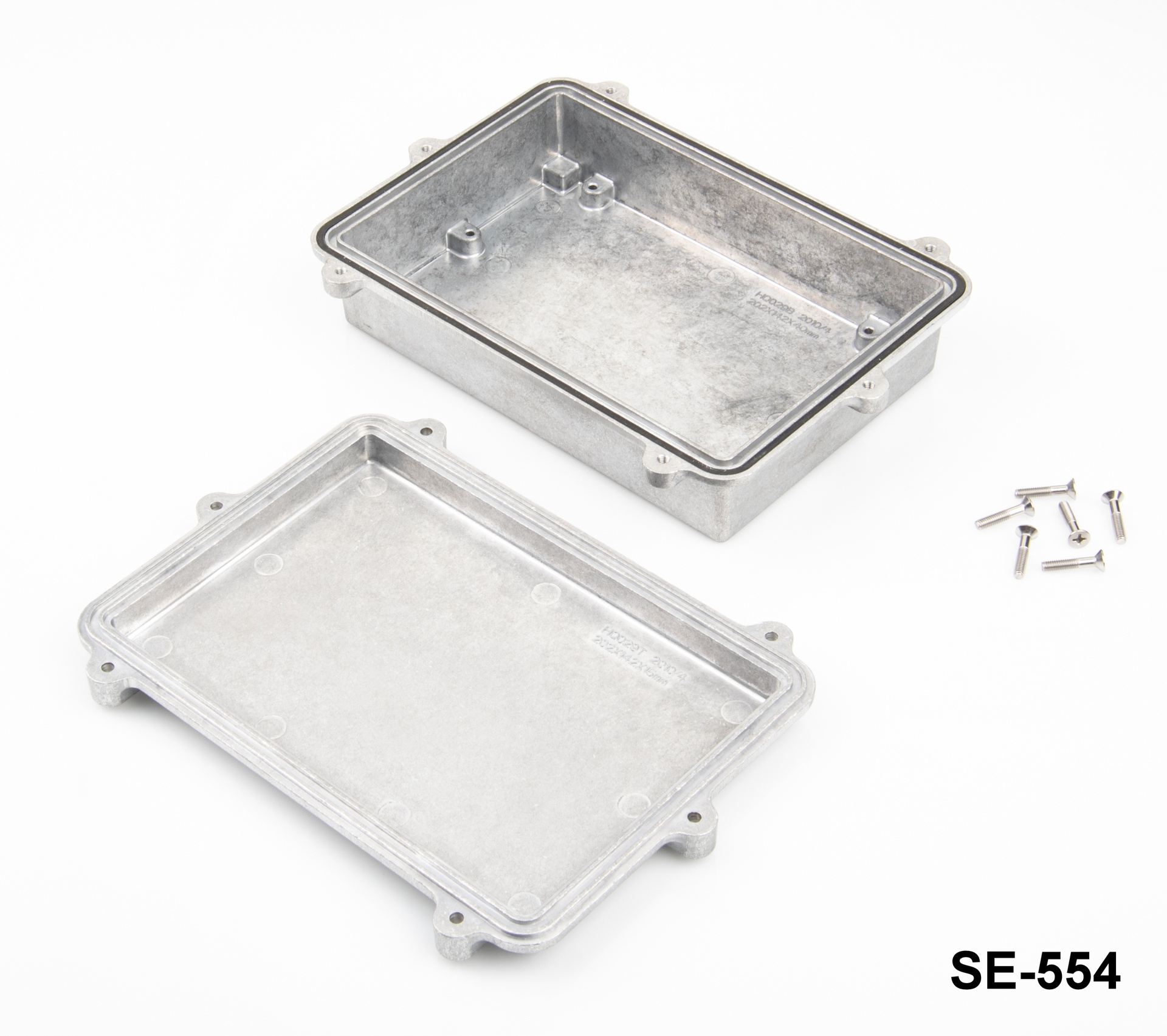

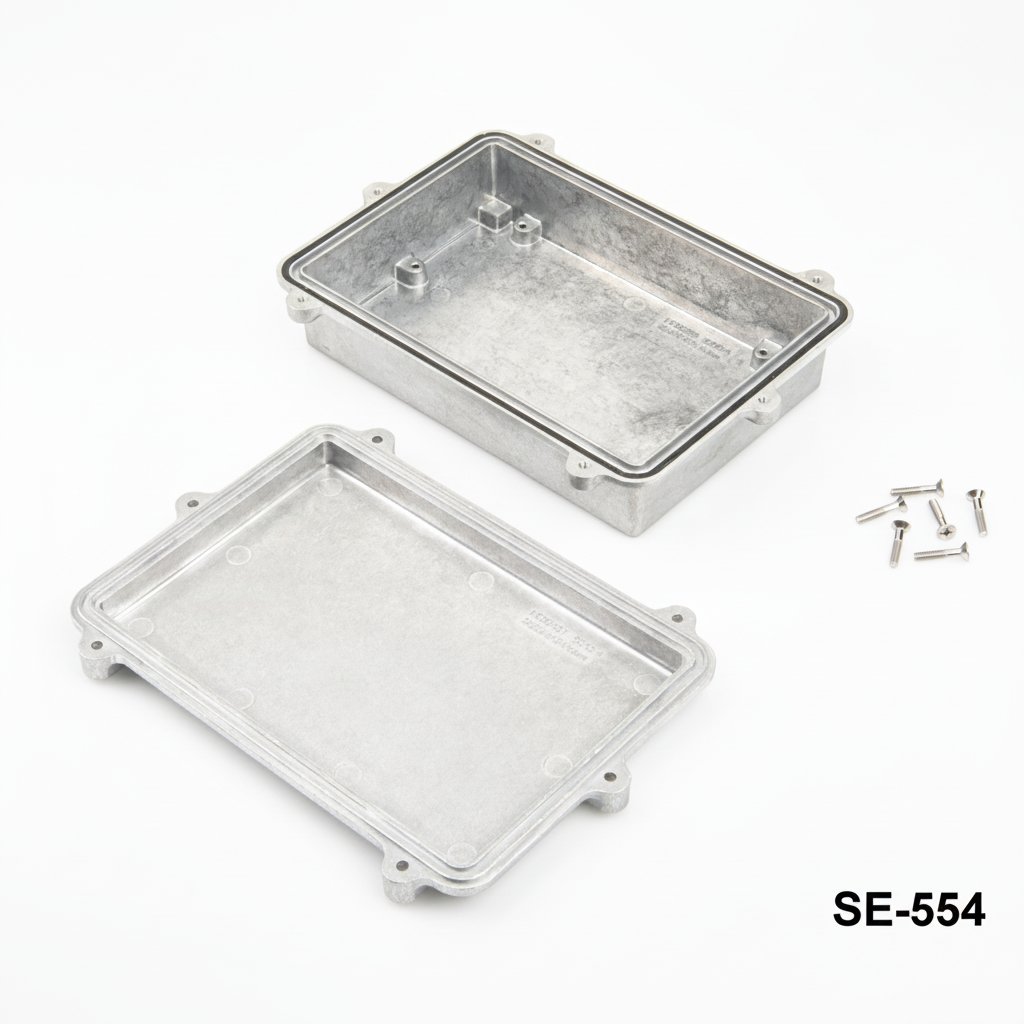

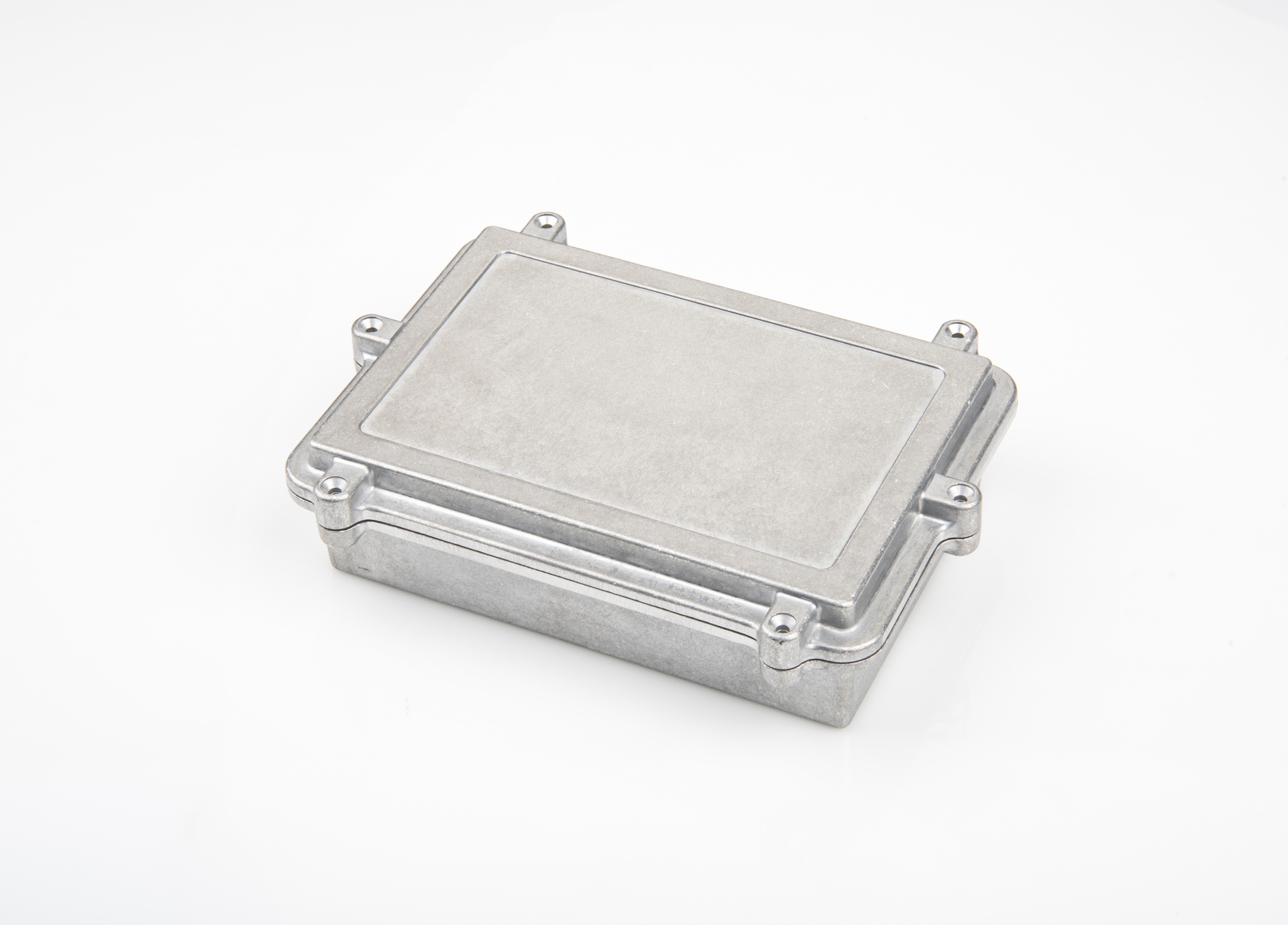

SE-554 IP67 Aluminum Enclosure

The SE-554 IP67 Aluminum Enclosure is a high-quality, diecast aluminum housing designed for use in a variety of electronic and electrical applications. With dimensions of 202 mm x 142 mm x 55 mm, this enclosure is well-suited for use with pressure transmitters, seismographs, embedded systems, and amplifiers.

The natural aluminum finish of this enclosure can be powder-coated into any color based on the quantity. For information on quantity details and customization options, please contact our International Sales team. The SE-554 features double channels for seals, with one providing waterproofness and the other being an EMI seal. Note that the EMI seal must be ordered separately.

Material Aluminium
A (mm) 202
B (mm) 142
C (mm) 55
Seal Conta Var
IP Rate IP67
IP Certificate
ALTINKAYA_SE-554_IP67.pdf
Download
3D
SE-554-3D.zip
Download
PDF
SE-554-drawing.pdf
Download
DXF
SE-554-drawing.zip
Download
