SE-236 IP-67 Plastic Heavy Duty Enclosure

[SE-236-0-0-D-0] 171 x 121 x 55 mm (6.73 x 4.76 x 2.17 in)
https://www.altinkaya.com/web/image/product.template/987/image_1920?unique=9f7d3a5

It is an ideal choice for embedded systems, transmitters, barometers, gas and humidity sensors, temperature control and measurement applications that require a high level of protection.

Login or Register to see price

Not Available For Sale

  • Color
  • Material
  • Top Cover

This combination does not exist.

Contact Us
Barcode :
8698651112245

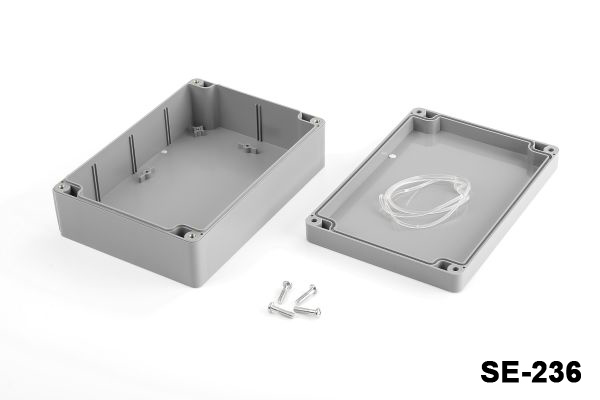

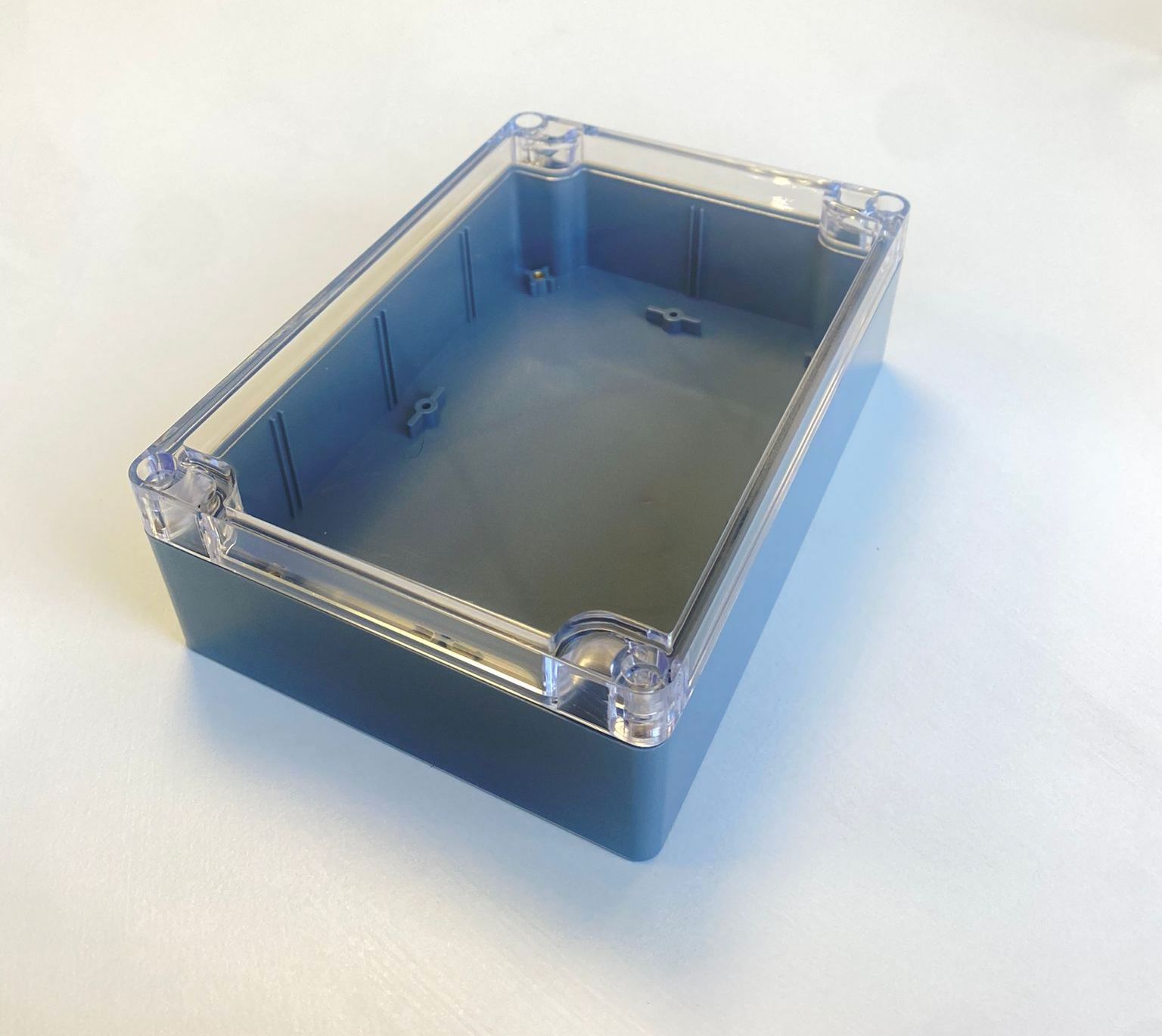

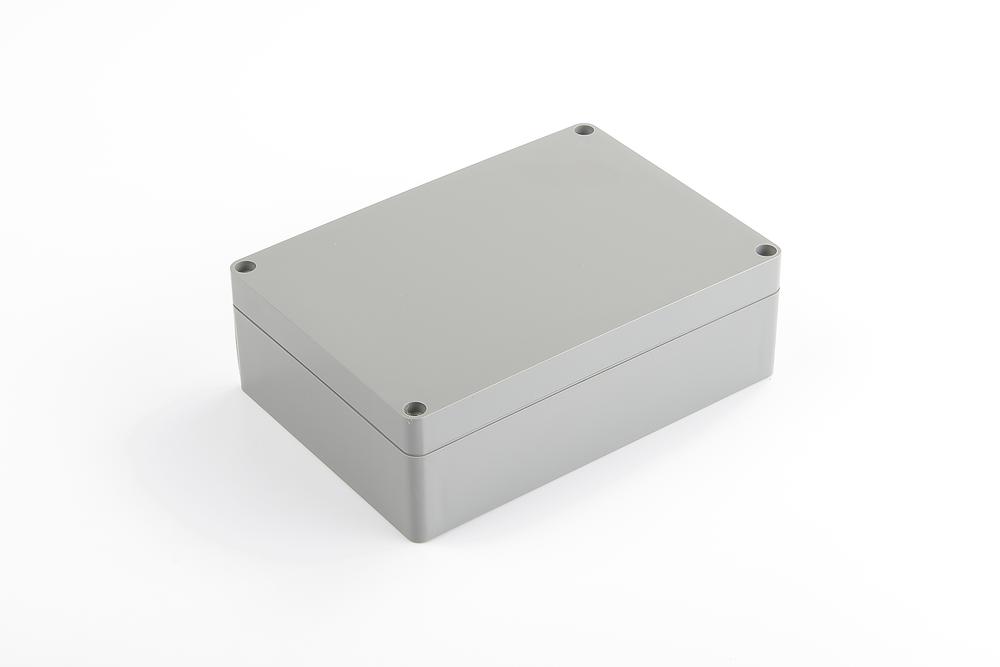

SE-236 is a heavy duty enclosure with IP67 certificate. Waterproof and dustproof features allow usage in outdoor applications. Customization by CNC machining, UV printing and laser marking is available for this product. The product is produced with ABS material. Clear lid with PC material is an available option.

Specifications

Color Dark Gray
Material ABS
Top Cover Transparent Cover, Flat Cover
E1 171
E2 163
E3 132
E4 159
B1 (mm) 121
B2 (mm) 113
B3 (mm) 91,5
B4 (mm) 91
D1 (mm) 55
D2 (mm) 44,5
D3 (mm) 40
D4 (mm) 15
UL94 HB
A (mm) 171
B (mm) 121
C (mm) 55
Operating Temperature -30° / +70°
IP Rate IP67
Units per box 10
​
