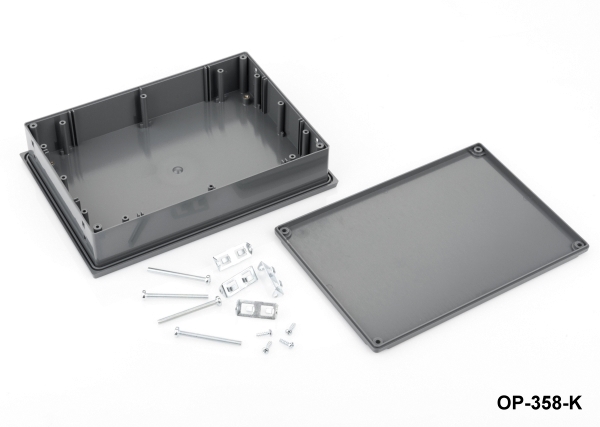

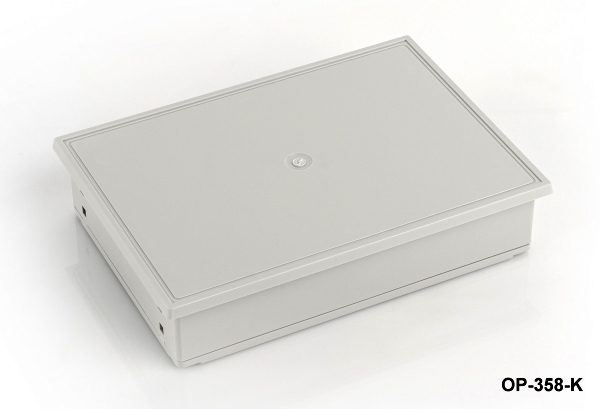

[OP-358-K-0-S-0] OP-358 Operator Panel Enclosure (Black , Closed Screen Opening)

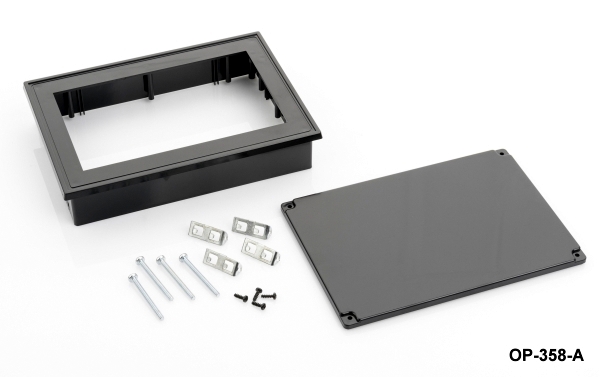

[OP-358-A-0-D-0] OP-358 Operator Panel Enclosure ( Dark Gray)

[OP-358-A-0-G-0] OP-358 Operator Panel Enclosure ( Light Gray , Open Display window )

[OP-358-A-0-S-0] OP-358 Operator Panel Enclosure ( Black, Open Display window )

[OP-358-K-0-D-0] OP-358 Operator Panel Enclosure ( Dark Gray , Closed Screen Opening )

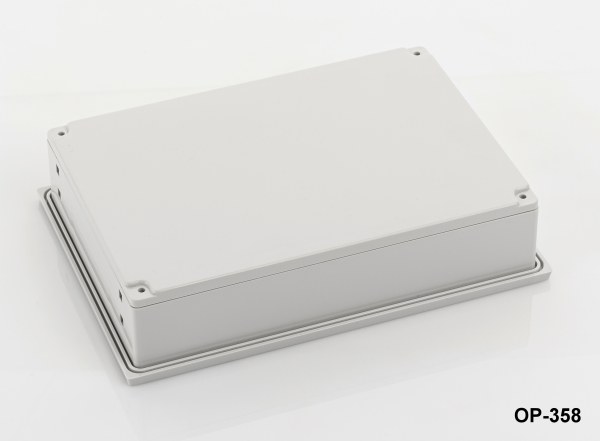

OP-358 Operator Panel Enclosure

[OP-358-K-0-S-0] 209.6 x 146.5 x 46.5 mm (8.25 x 5.77 x 1.83 in)

Akıllı ev sistemleri, Soğutma kontrol üniteleri, Otomasyon kontrol cihazları dahil olmak üzere çok çeşitli uygulamalar için uygun yüksek kaliteli bir kutu.

Login or Register to see price

Color
- Light Gray
- Black
- Dark Gray
Screen Frame
- Closed Screen Opening
- Open Display window

This combination does not exist.

Barcode :

8698651329391

OP-358 is made of ABS-UL94-V0 material and used for 7" screens.

Specifications

Color	Light Gray, Black, Dark Gray
Screen Frame	Closed Screen Opening, Open Display window
Material	ABS
UL94	HB
A (mm)	209.6
B (mm)	146.5
C (mm)	46.5
Operating Temperature	-30° / +70°
IP Rate	IP40
Units per box	10
