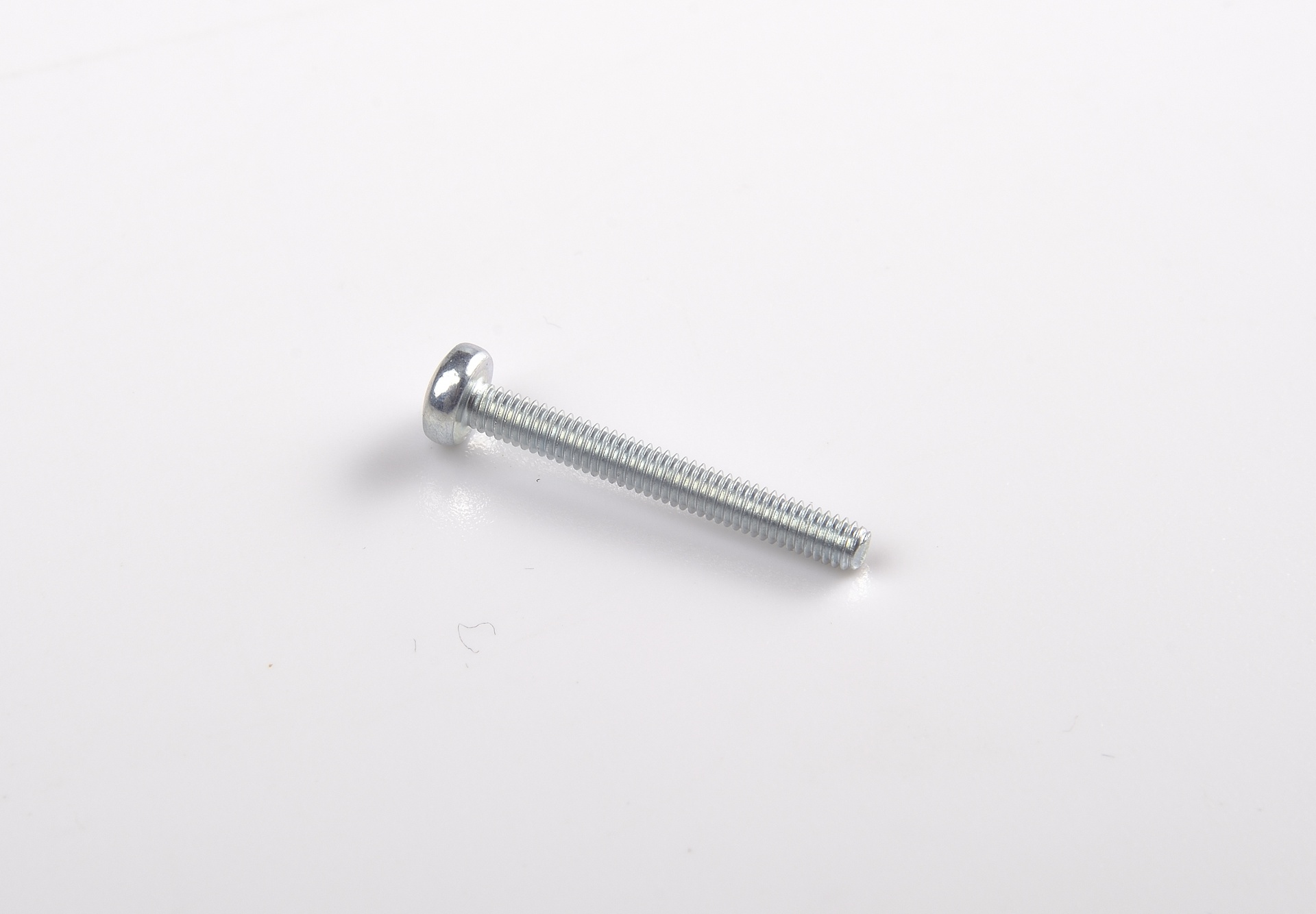

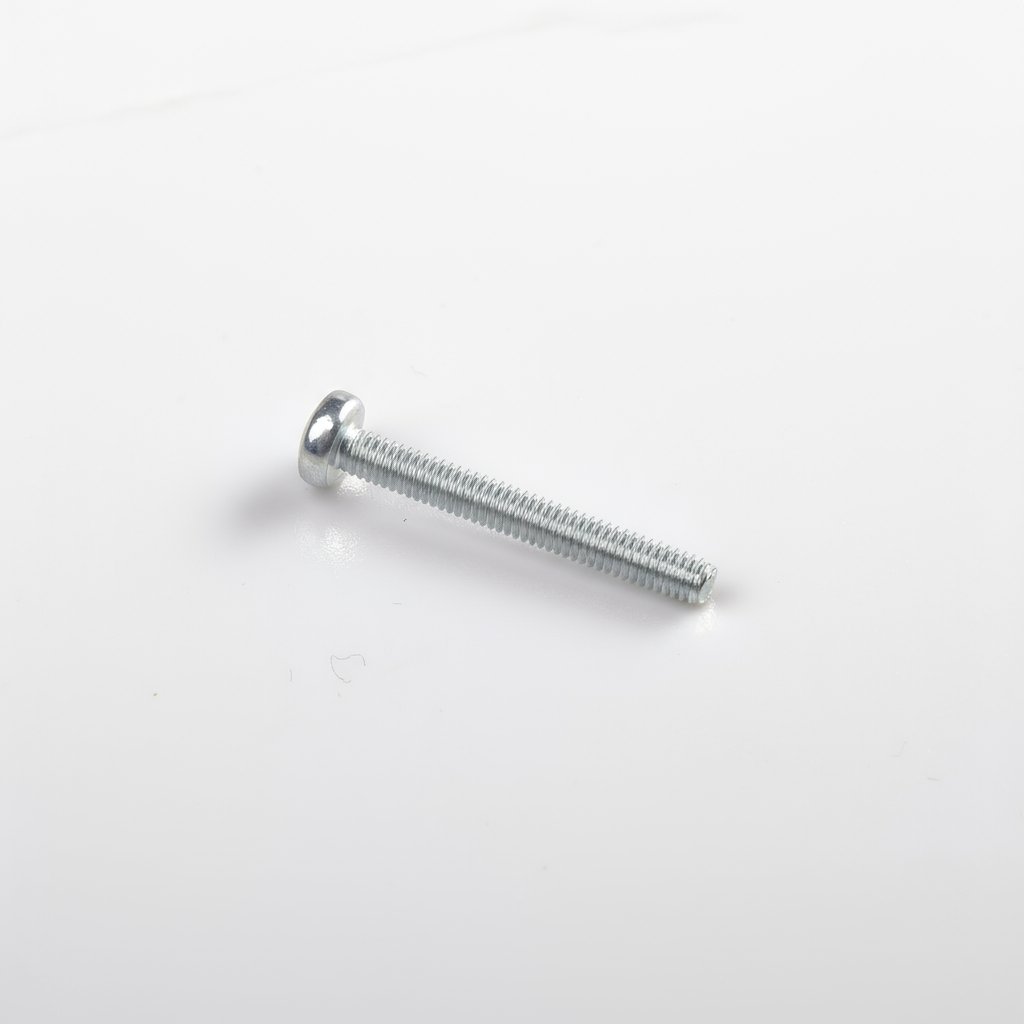

M4x35 Pan Head Metallic Screw

Price:

$ 0.0721
Chat with us
  1. Products
  2. Screws
  3. M4x35 Pan Head Metallic Screw
M5x15 Countersunk Head Self Tapping Screw
M5x15 Countersunk Head Self Tapping Screw
$ 0.0424
$ 0.0424
M4x30 Stainless Screw (R7x5.5x30)
M4x30 Stainless Screw (R7x5.5x30)
$ 0.1283
$ 0.1283

M4x35 Pan Head Metallic Screw

[A-681-0-0-M-0]
https://www.altinkaya.com/web/image/product.template/564/image_1920?unique=8e9c990

$ 0.0721 0.0721 USD $ 0.0721 No VAT

₺ 1.00 No VAT

Not Available For Sale

    This combination does not exist.

    Contact Us
    Barcode :
    8698651309249



    Specifications

    Thread Pitch 0.7 mm
    Fully Threaded Fully Threaded
    Head Diameter 8 mm
    Head Height 3 mm
    Drive Style PH Philips
    Drive Style PH-2
    Thread Type Metric
    Thread Spacing Coarse
    Thread Fit Class 6h
    Head Type Round
    System of Measurement Metric
    RoHS RoHS (2015/863/EU) Compliant
    REACH REACH Compliant
    Country of Origin Türkiye
    Hardness Min.320-380Hv.
    Specifications Met DIN 7985
    Rounded Head Style Pan
    Rounded Head Profile Standard
    Thread Size M4
    Length 35 - 35 mm
    Material 20 Mn-B4
