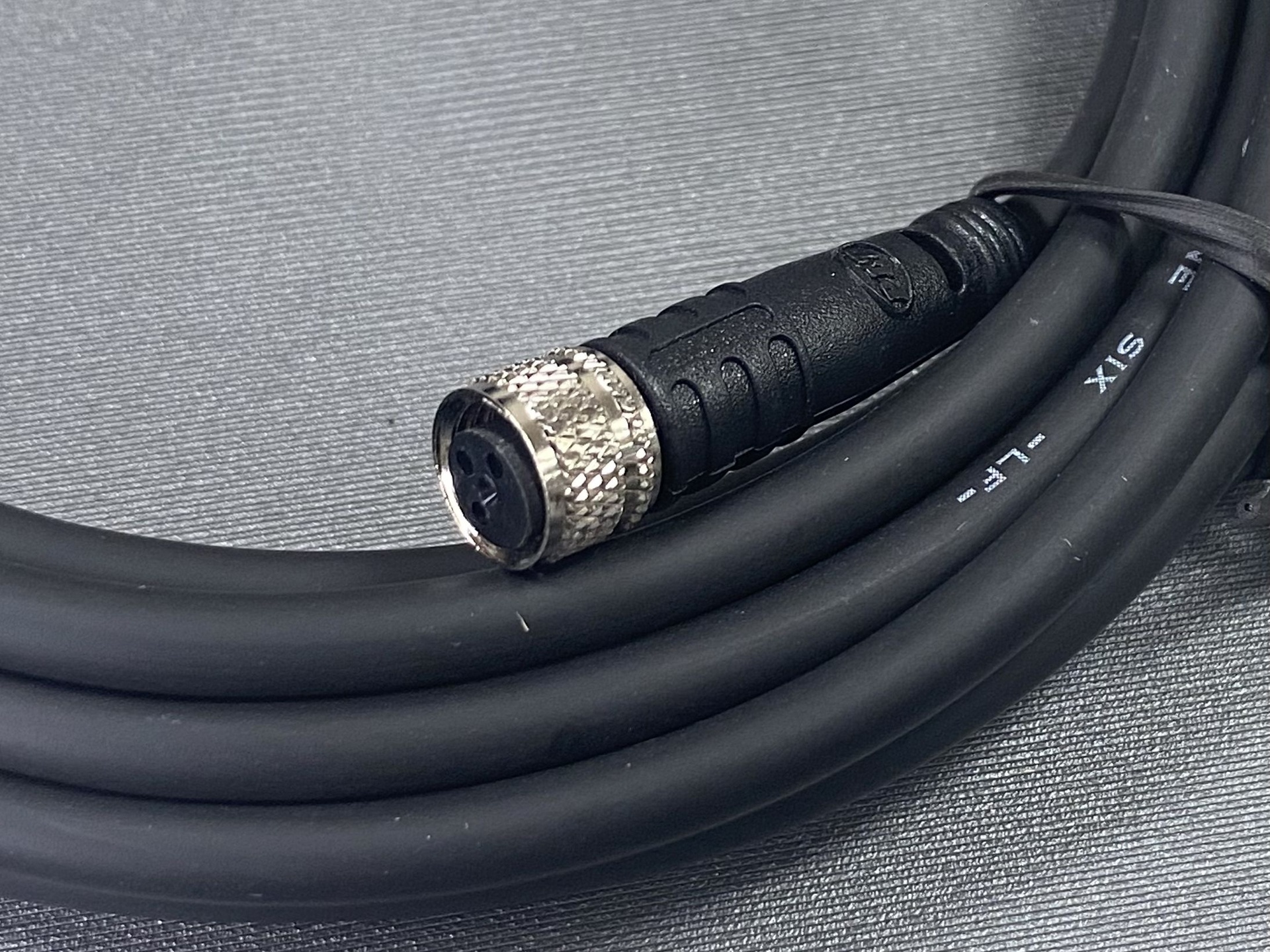

M-631-PF3-R 3 Pin Plug Type Female IP-67 Connector with M8 Cable

[M-631-PF3-R]
https://www.altinkaya.com/web/image/product.template/49644/image_1920?unique=a0f2d00

M8 kablo ile 3 pinli fiş tipi dişi konnektör. Alüminyum alaşımlı pin uzunluğu 3 mm'dir. IP-67 sınıfı su geçirmez.

Login or Register to see price

Not Available For Sale

  • Number of Poles
  • Shell Size
  • Gender
  • Bağlantı Tarafı
  • Nominal Current-Voltage Max.
  • Nominal Current-Voltage Min.
  • Withstanding Voltage 1 min.
  • IP Rate

This combination does not exist.

Contact Us
PLT
Barcode :
8698651450866



Specifications

Number of Poles 3
Shell Size M8
Gender Female
Bağlantı Tarafı Plug
Nominal Current-Voltage Max. 3A-125V
Nominal Current-Voltage Min. 5mA-5V
Withstanding Voltage 1 min. 300V
IP Rate IP67
​
