M-624-PM3-R M12 Wired 4 Pin Plug Type Male IP-67 Connector (A-Code)

[M-624-PM3-R (A-Code)]
https://www.altinkaya.com/web/image/product.template/49651/image_1920?unique=45078b0

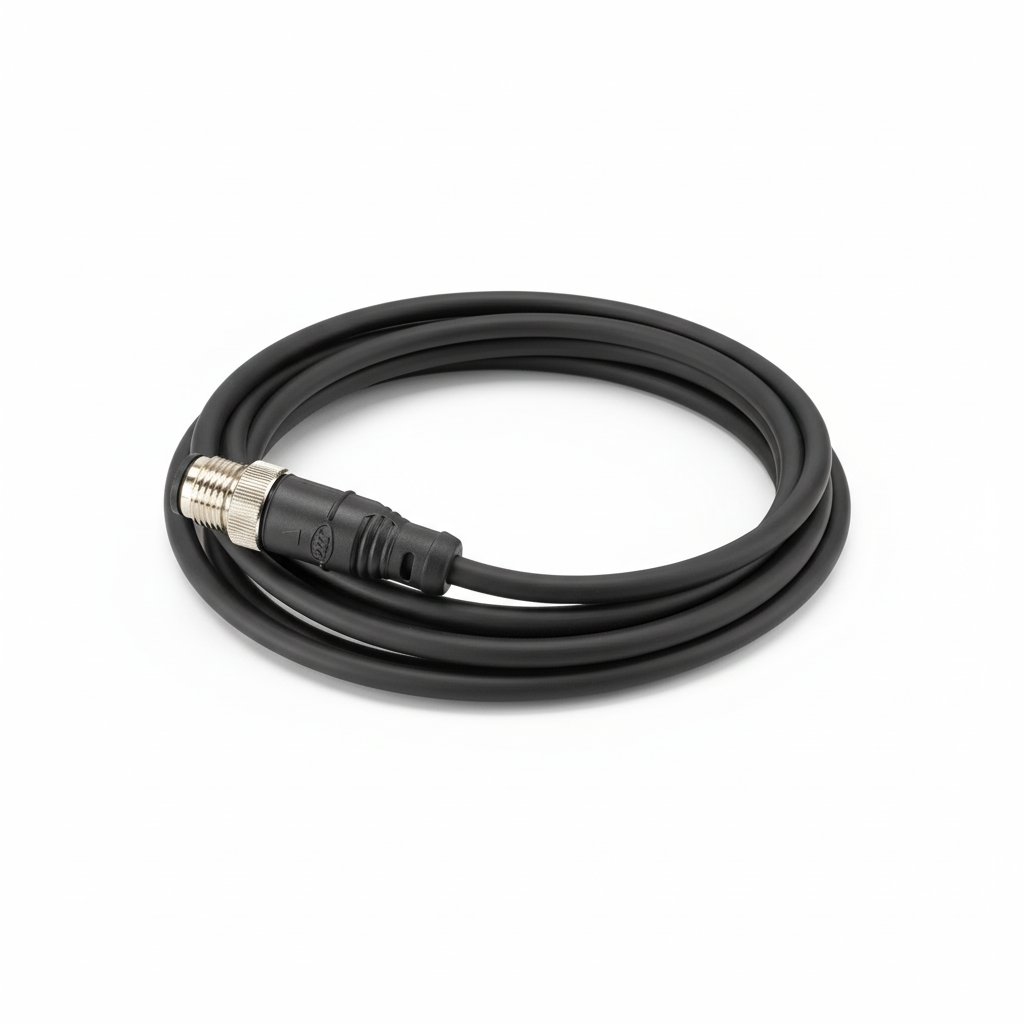

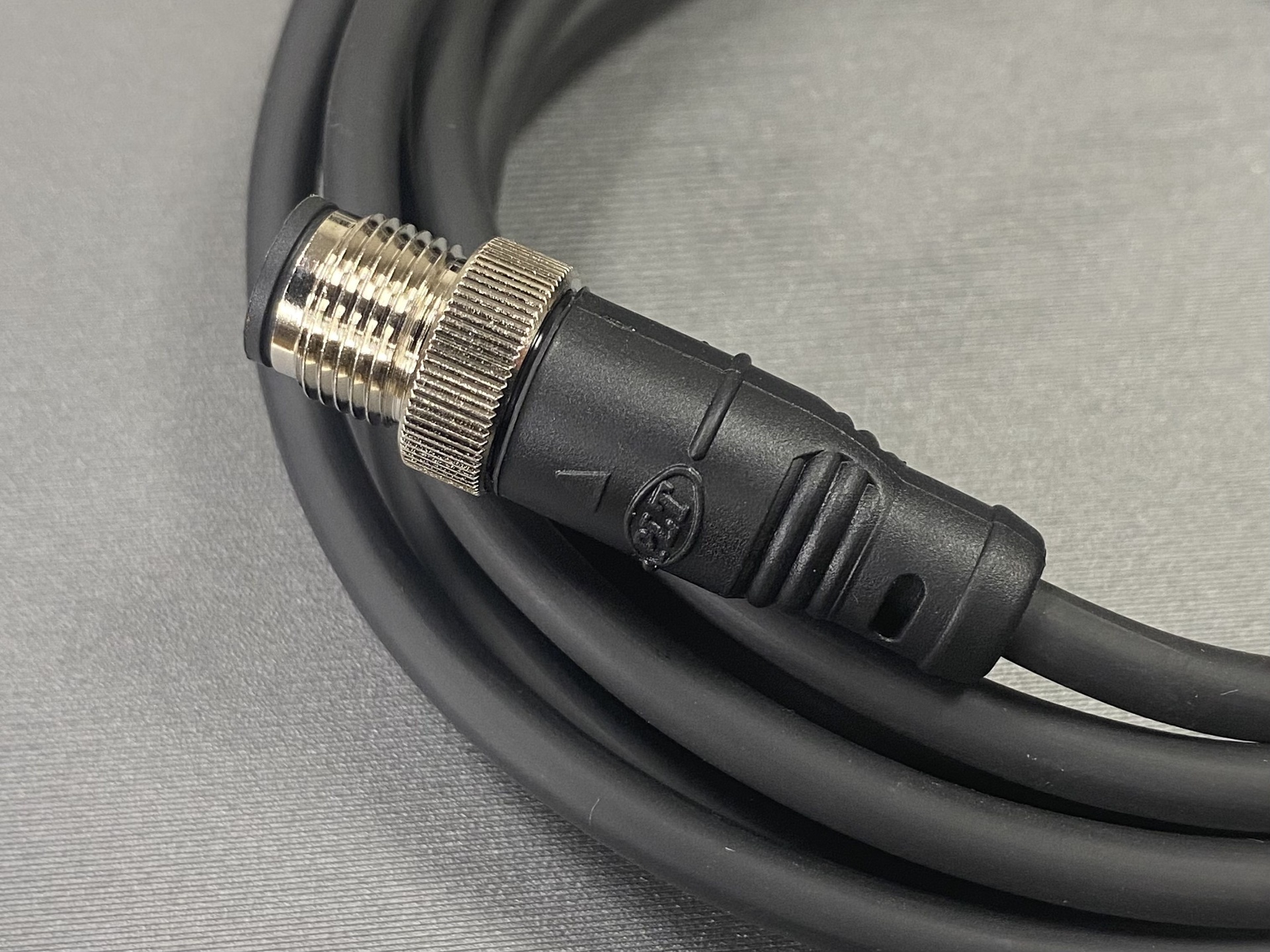

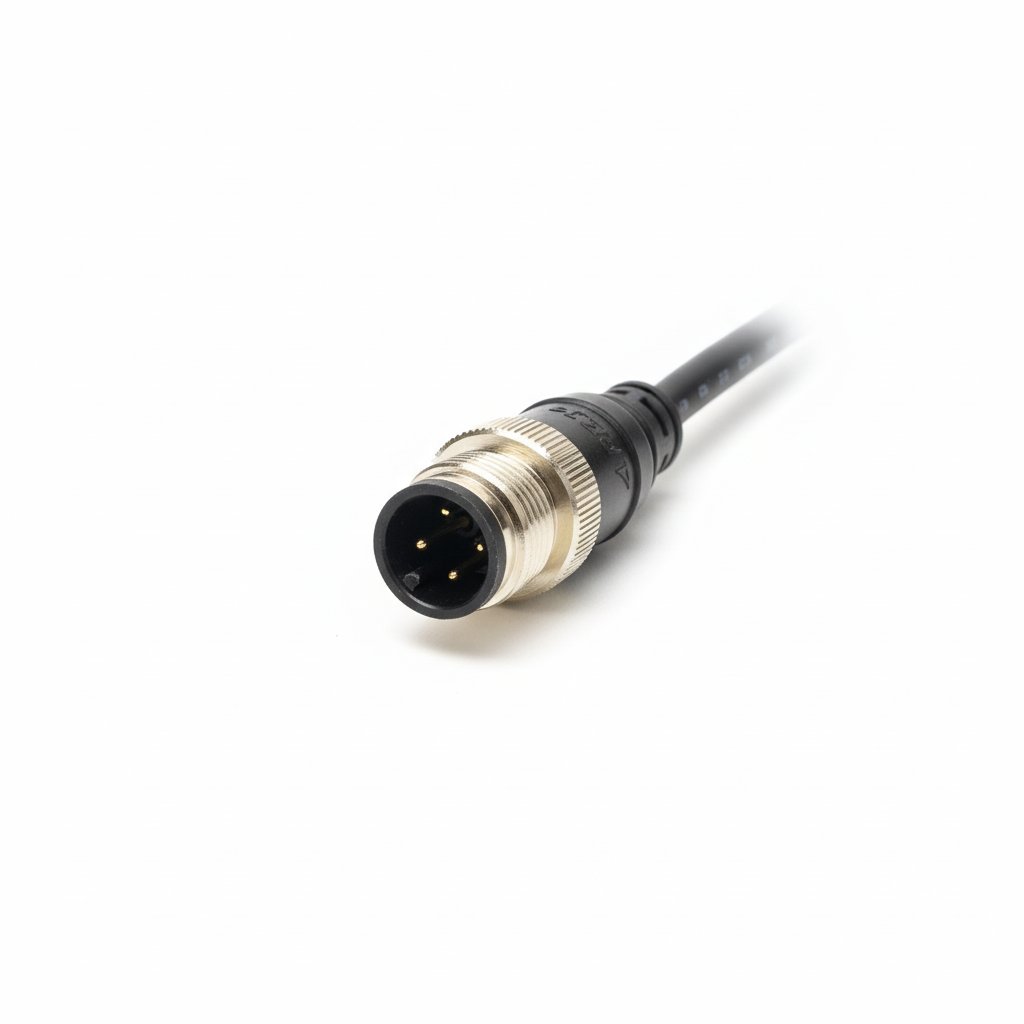

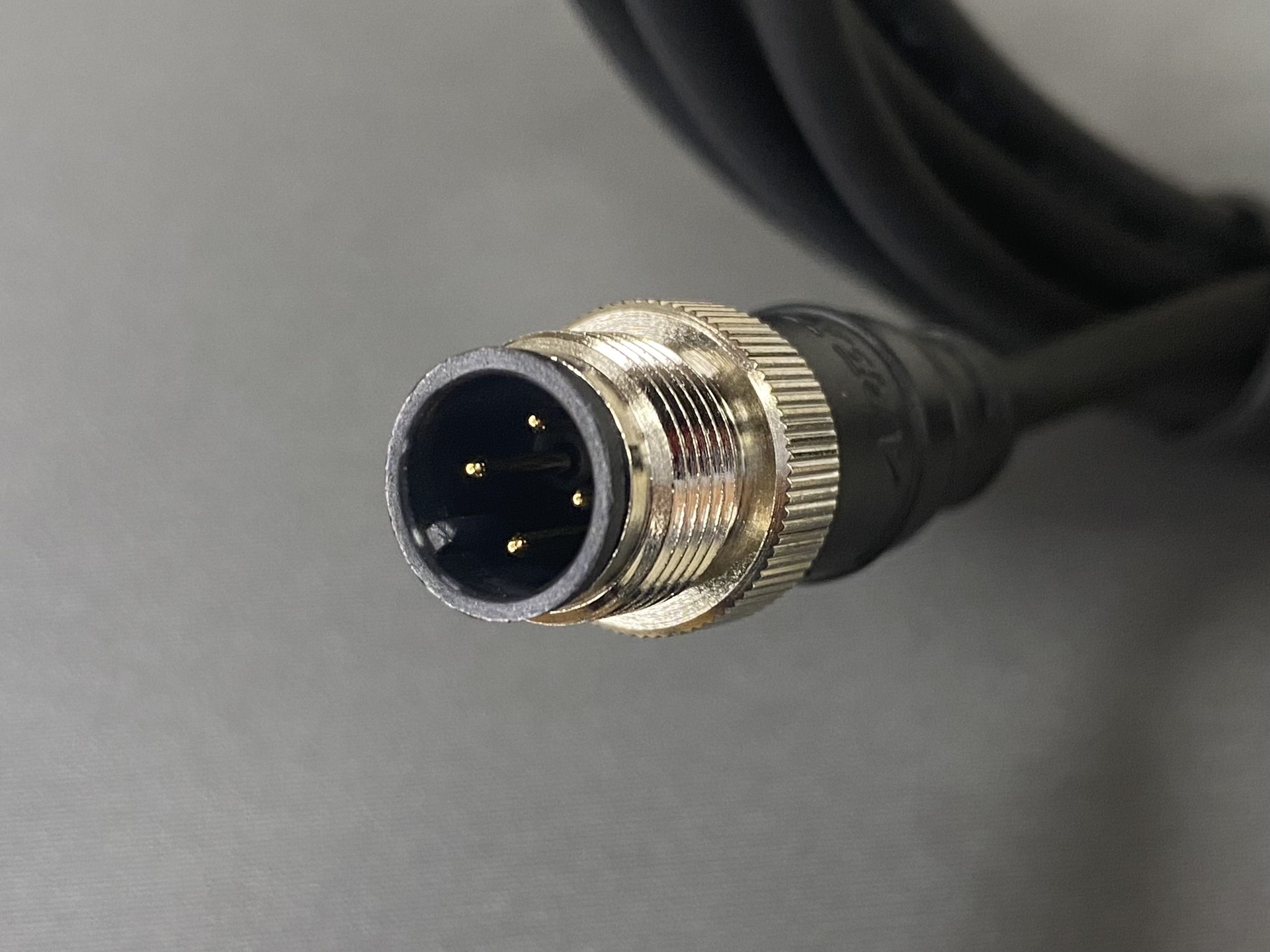

4 pin plug type male connector with M12 cable. Aluminum alloy pin length is 3 mm. IP-67 class waterproof.

$ 12.89 12.888100000000001 USD $ 12.89 No VAT

₺ 1.00 No VAT

Not Available For Sale

  • Number of Poles
  • Shell Size
  • Gender
  • Bağlantı Tarafı
  • Nominal Current-Voltage Max.
  • Nominal Current-Voltage Min.
  • Withstanding Voltage 1 min.
  • IP Rate

This combination does not exist.

Contact Us
PLT
PLT

Barcode :
8698651450903



Specifications

Number of Poles 4
Shell Size M12
Gender Male
Bağlantı Tarafı Plug
Nominal Current-Voltage Max. 3A-125V
Nominal Current-Voltage Min. 5mA-5V
Withstanding Voltage 1 min. 300V
IP Rate IP67
