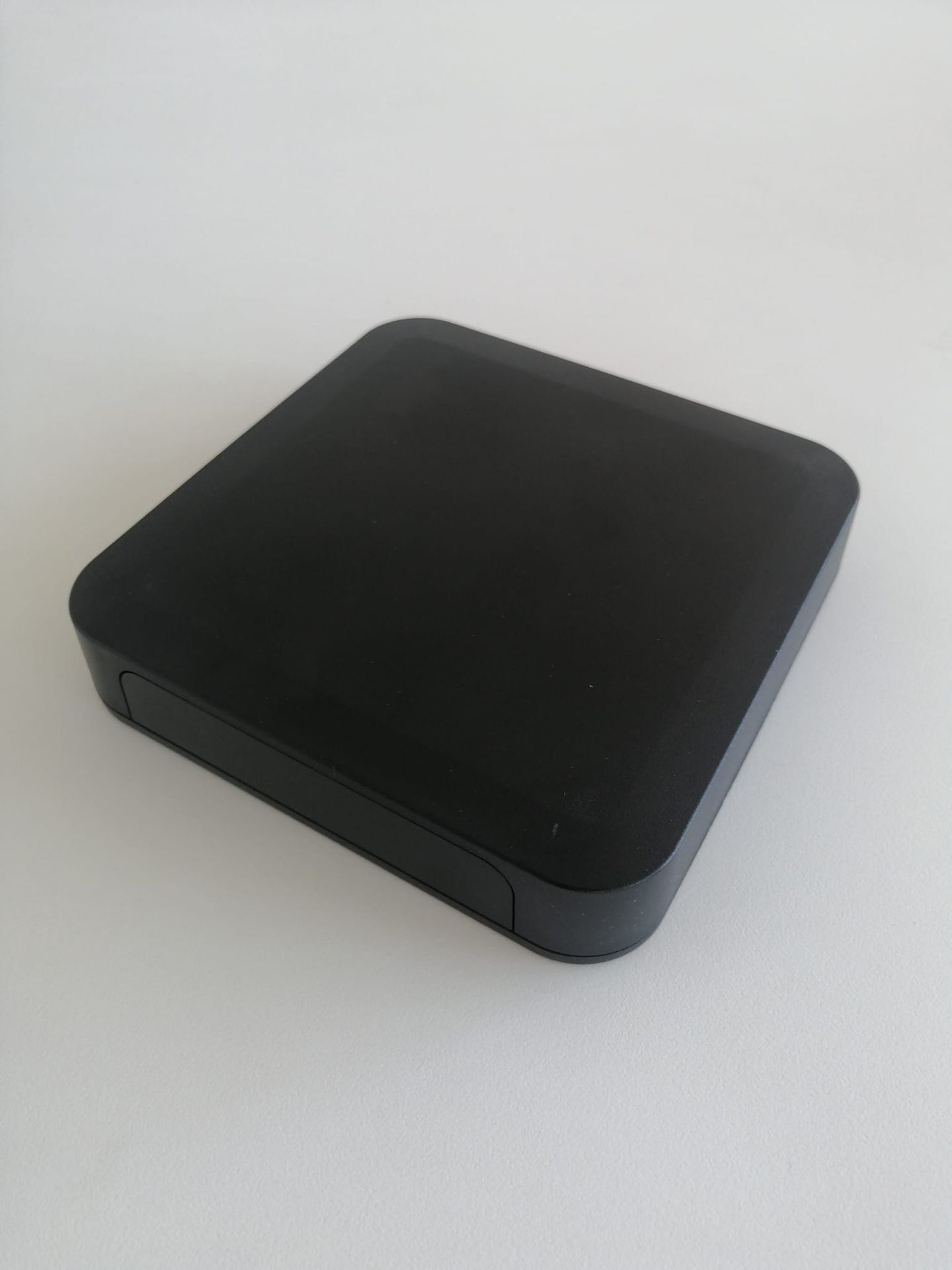

HH-1515 Hand Held Enclosure

[HH-1515-0-0-G-V0] 150 x 150 x 31 mm http://www.altinkaya.com/web/image/product.template/1336/image_1920?unique=38bf284

The perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, remote control and HVAC.

Not Available For Sale

  • Color
  • Custom Production
  • Material
  • UL94

This combination does not exist.

You can view product prices by logging in.

HH-1515 Handheld Enclosure

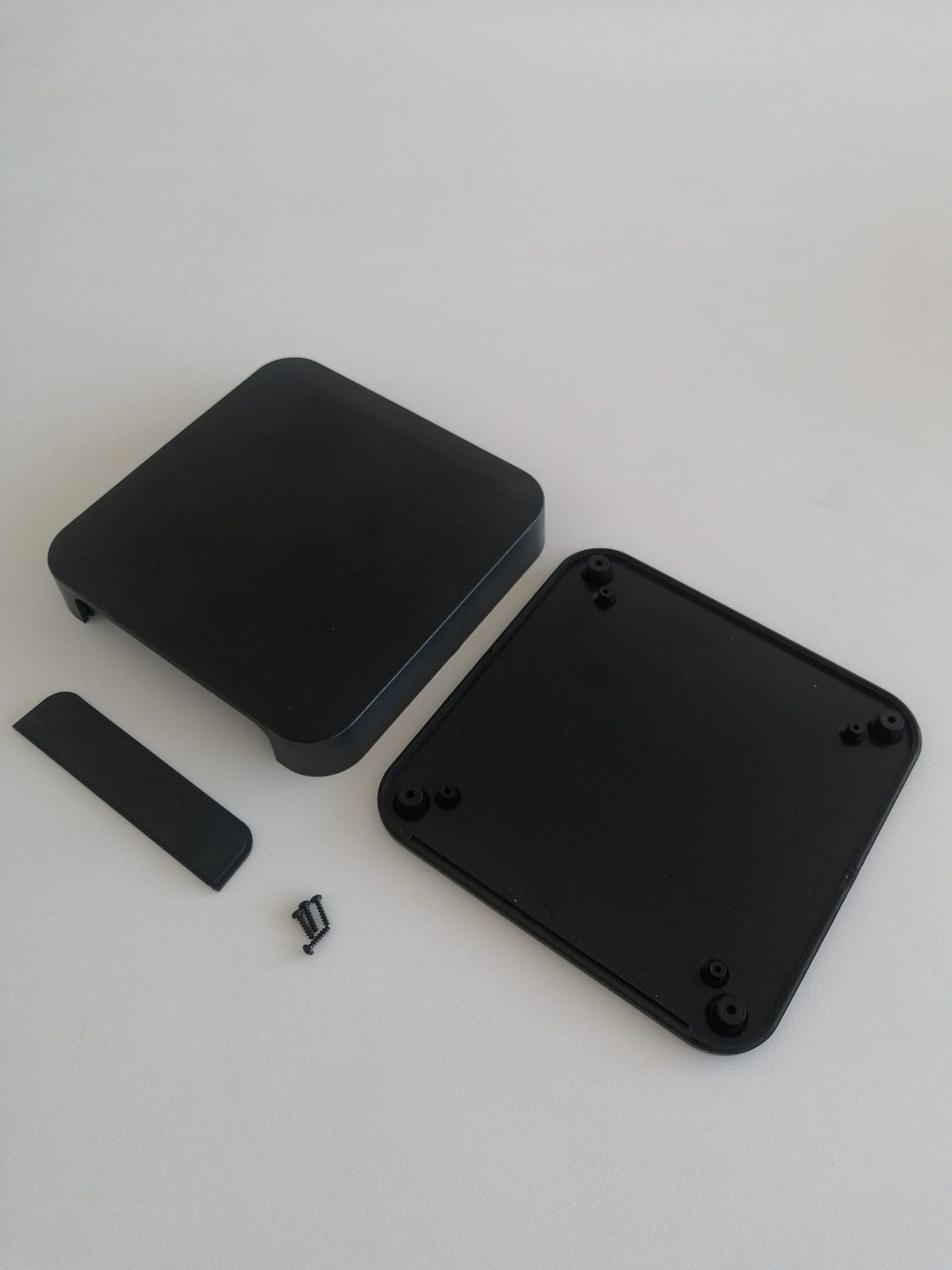

The HH-1515 handheld enclosure is the perfect solution for a variety of applications, including sensors, controllers, tracking systems, IOT, automation, smart building systems, and HVAC. This versatile enclosure is made from high-quality ABS UL-HB material and comes in light gray or black standard color options to fit your design needs. With base cover parts and screws included, the HH-1515 is easy to assemble and customize to your specific requirements.

The compact size and ergonomic design of the HH-1515 make it comfortable and easy to hold, allowing for convenient use in various settings. Whether you're working on a small-scale project or a larger installation, the HH-1515 provides the durability and flexibility you need to ensure a safe and effective electrical system. So why wait? Order your HH-1515 handheld enclosure today and take your project to the next level!

Specifications

Color Light Gray, Black
Material ABS
UL94 V0
A (mm) 150
B (mm) 150
C (mm) 31
Operating Temperature Cover -40° / +120°
IP Rate IP54
Units per box 10
PDF
HH-1515_drawing.pdf

3D
HH-1515_3D.zip

DXF
HH-1515_drawing.zip
