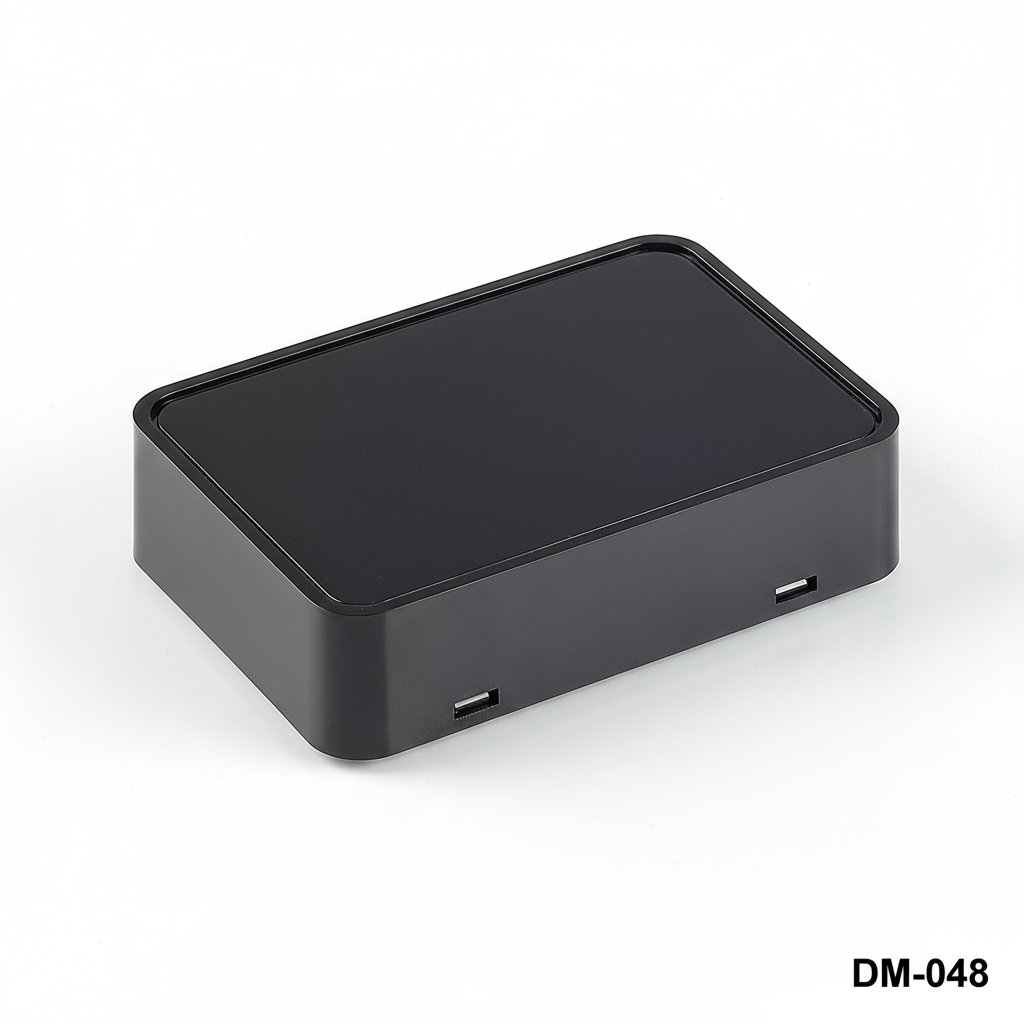

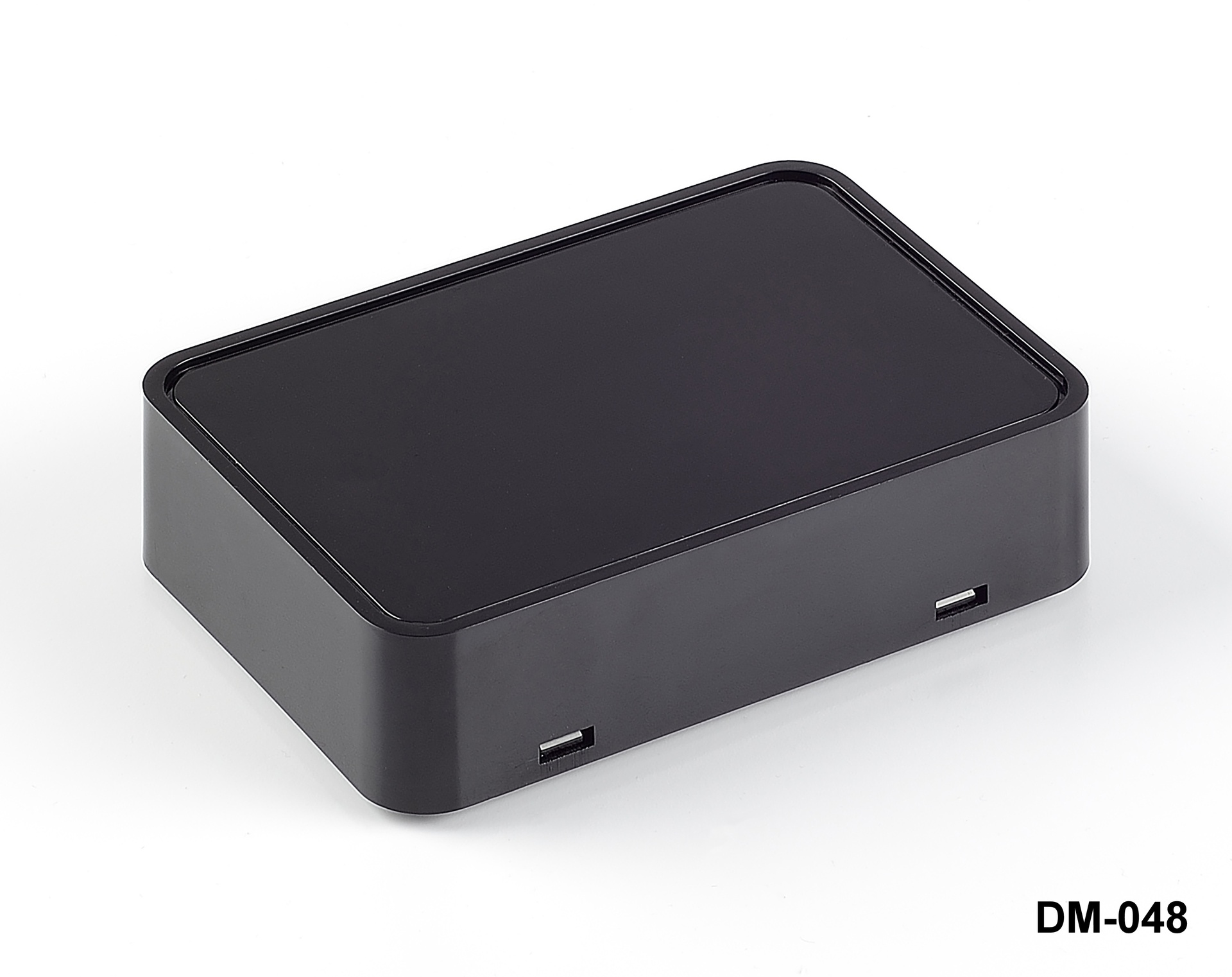

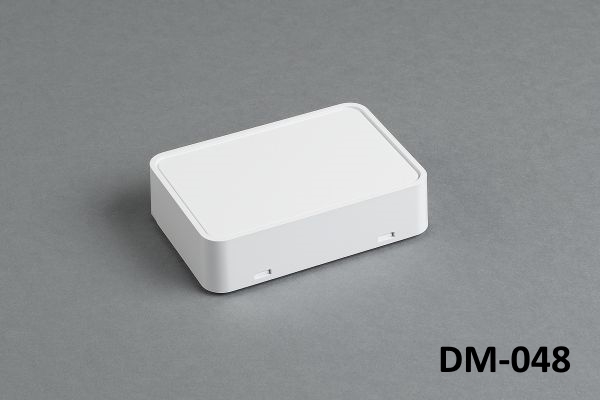

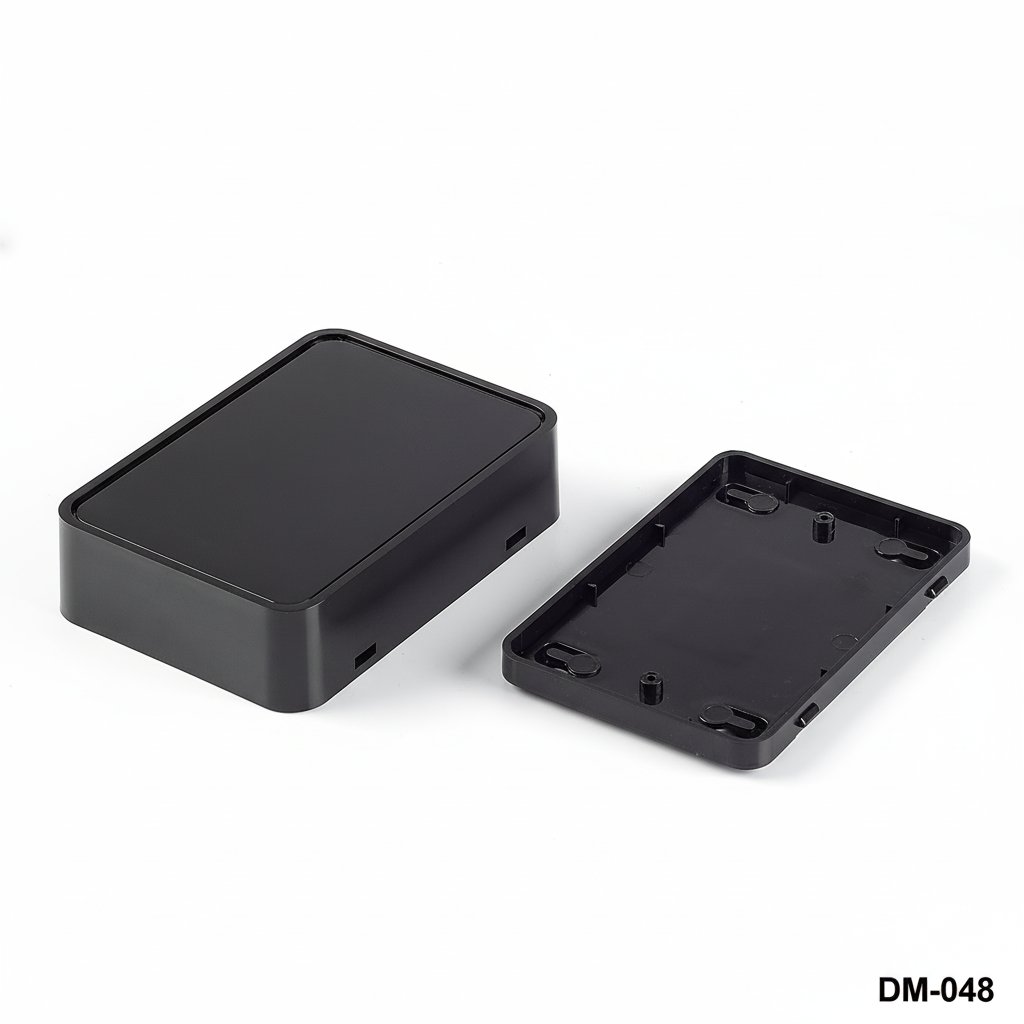

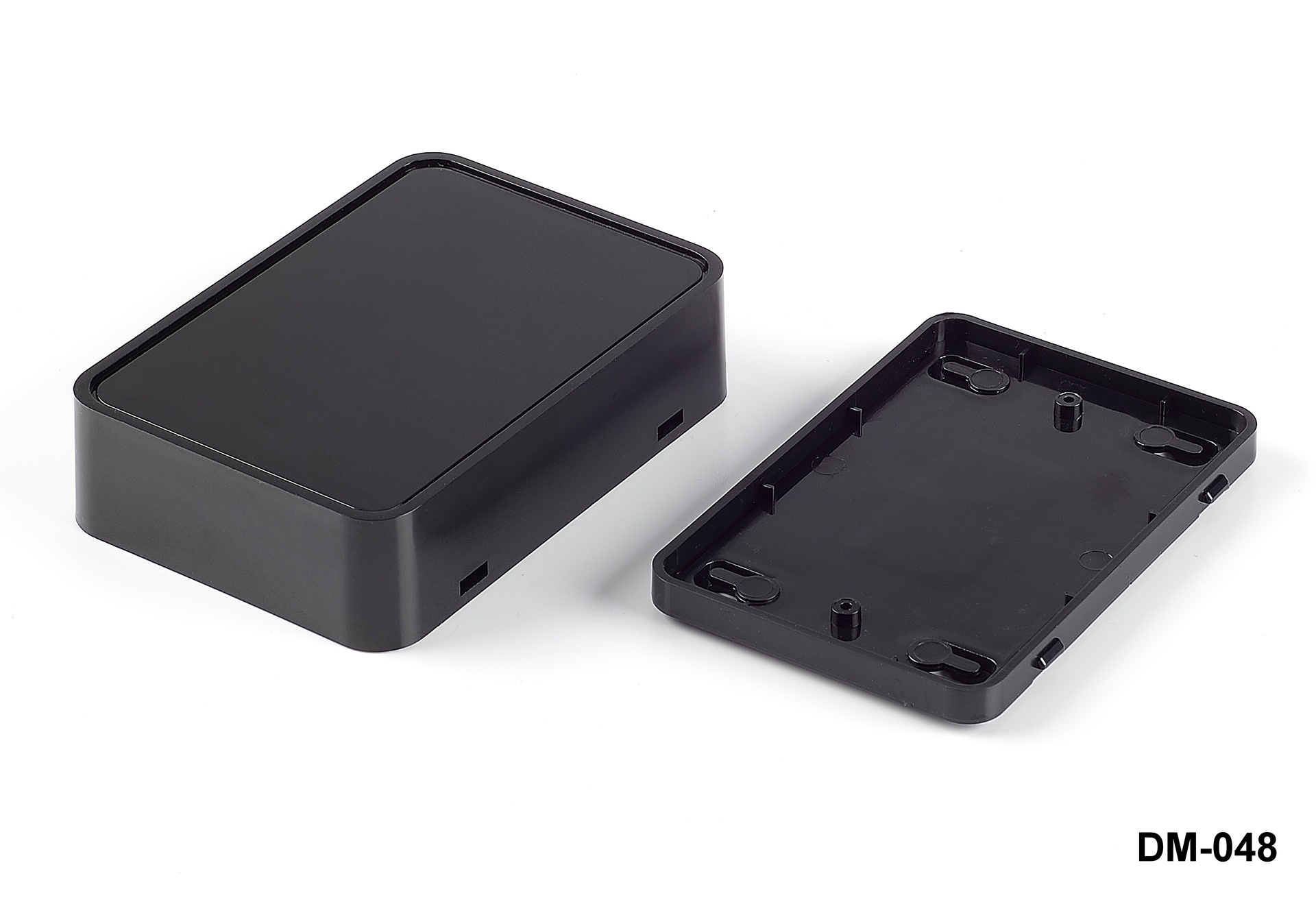

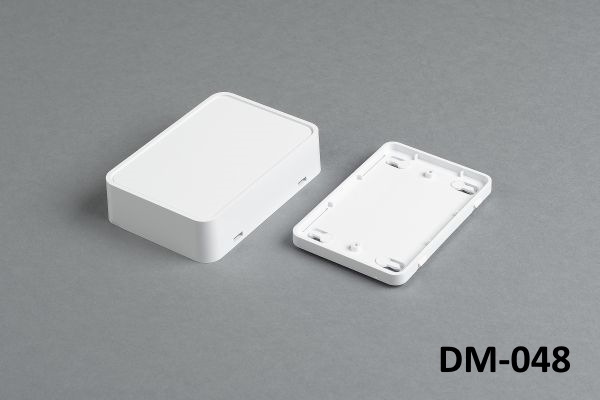

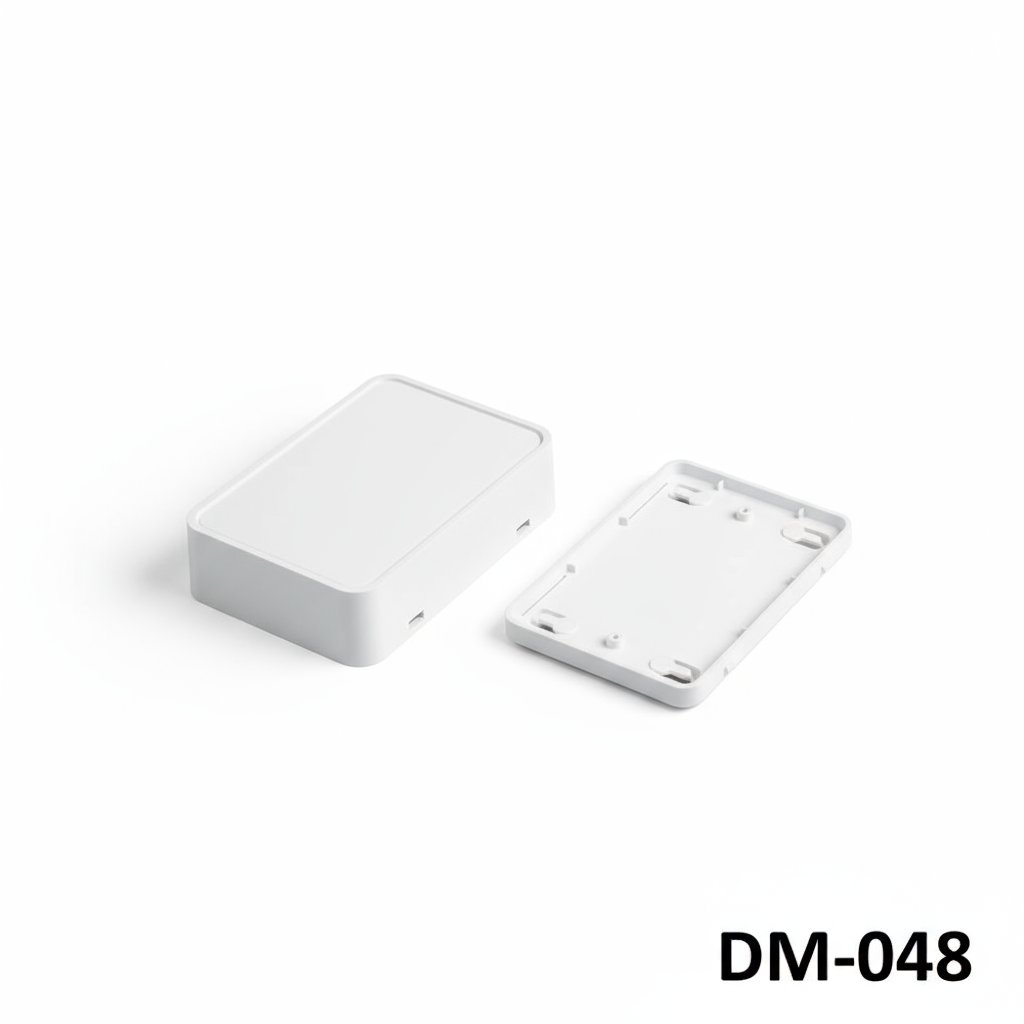

DM-048 Wall Mount Enclosure

[DM-048-0-0-B-0] 110 x 76 x 27 mm http://www.altinkaya.com/web/image/product.template/3158/image_1920?unique=3e0c5dc

The DM-048 Wall Mount Enclosure is a versatile and reliable solution for housing electronic devices, made of durable ABS-UL94-HB material with dimensions of 110 mm x 76 mm x 27 mm.

Not Available For Sale

  • Color
  • Custom Production
  • Material

This combination does not exist.

You can view product prices by logging in.


Gönderim: 2-3 İş Günü

DM-048 Wall Mount Enclosure

The DM-048 Wall Mount Enclosure is the perfect solution for your sensor applications, IoT systems, control and measurement devices, and tracking devices. Made of durable ABS-UL94-HB material, this enclosure has a sleek white and black color and measures 110 mm x 76 mm x 27 mm.

This enclosure is a part of our Wall Mount Enclosures category, which offers a range of options for different type of electronic devices. With its high-quality construction and versatile usage area, the DM-048 is a reliable choice for your electronic device housing needs.

Specifications

Color Black, White
Material ABS
Material ABS
UL94 HB
A (mm) 110
B (mm) 76
C (mm) 27
Operating Temperature -30° / +70°
IP Rate IP40
Units per box 50
3D
DM-048_3D.zip

PDF
DM-048_drawing.pdf

DXF
DM-048_drawing.zip
